129772 DODGE - FC-GTM-307

Brand - DODGE
Item Number - 129772 DODGE - FC-GTM-307
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Piloted Flange Bearings)
Series - 218
Shaft Size (inch) - 3.4375
Description - FC-GTM-307
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129510
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-18
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136552
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-18-307-D
Weight (lbs) - 36.8

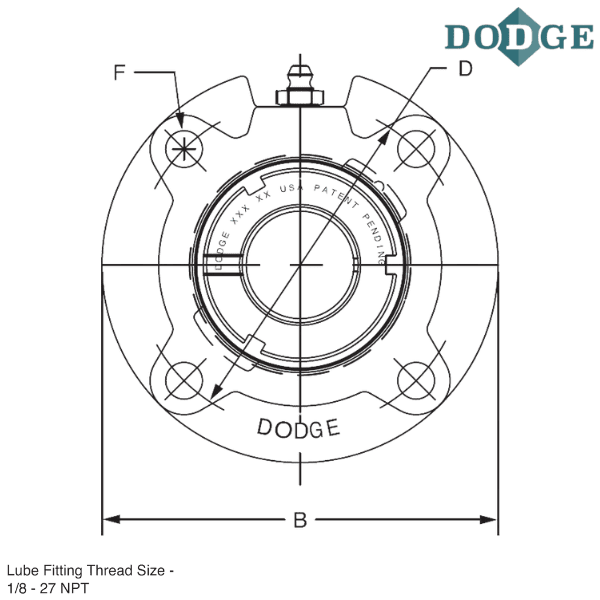

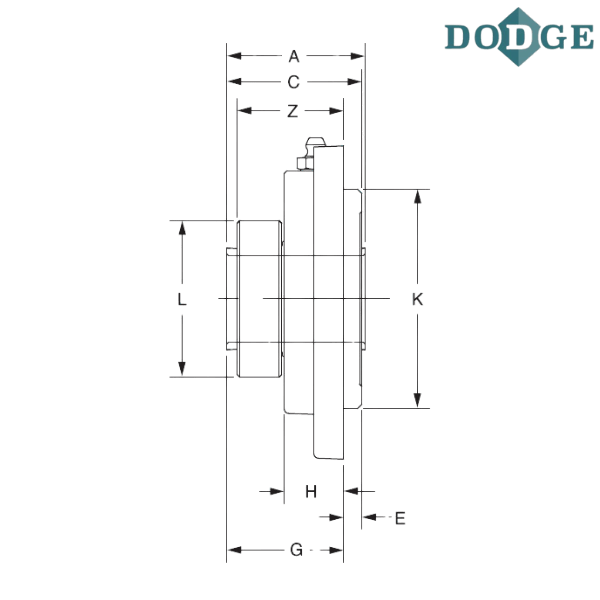

Length Through Bore (A) inch - 2.8
Overall Length (B) inch - 10.25
Thickness (C) inch - 3.57
Bolt Circle (D) inch - 8.63
Pilot Depth (E) inch - 1.13
F-Bolt Diameter (inch) - 0.75
G (inch) - 2.44
H (inch) - 1.63
Pilot Diameter (K) inch - 7.375/7.373
L (inch) - 5.19
Z (inch) - 2.42
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GTM - Wide inner ring, medium duty, thin wall adapter locking

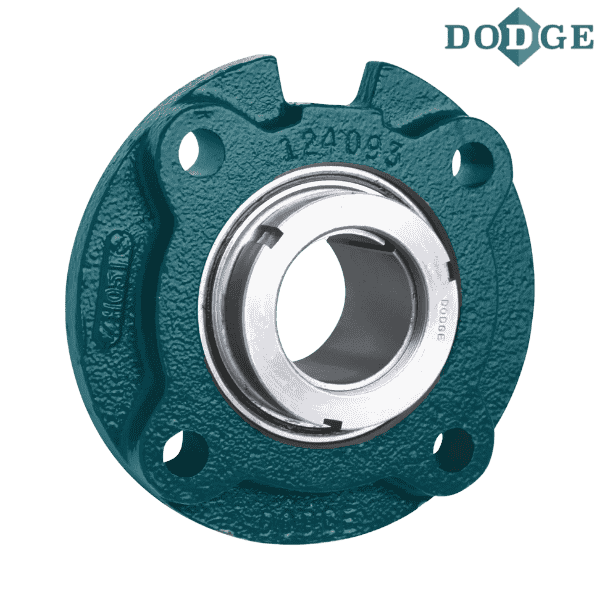

** Images are for representation purposes only
