129771 DODGE - FC-GTM-300

Brand - DODGE
Item Number - 129771 DODGE - FC-GTM-300
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Piloted Flange Bearings)
Series - 216
Shaft Size (inch) - 3
Description - FC-GTM-300
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129509
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-16
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136551
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-16-300-D
Weight (lbs) - 15.8

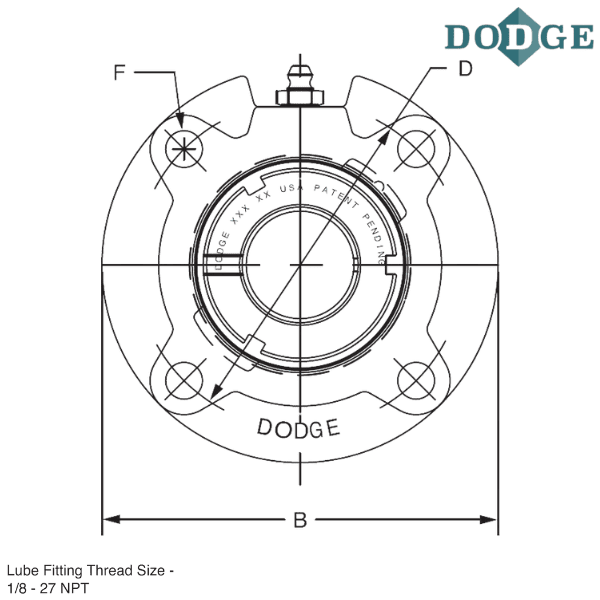

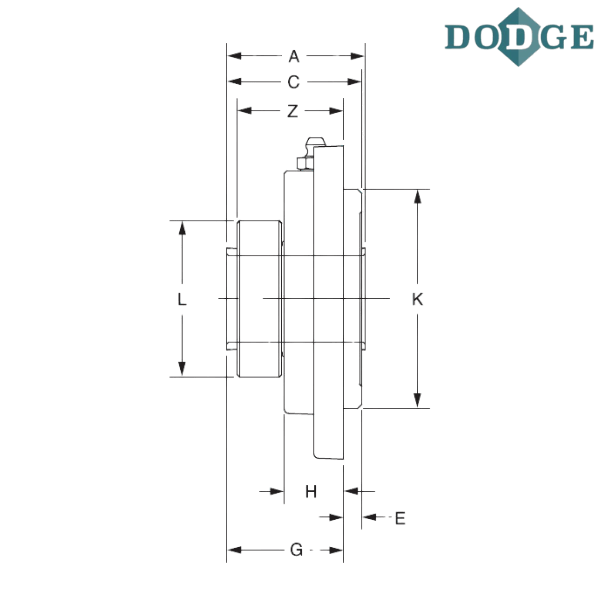

Length Through Bore (A) inch - 2.7
Overall Length (B) inch - 8.75
Thickness (C) inch - 3.33
Bolt Circle (D) inch - 7.5
Pilot Depth (E) inch - 1.25
F-Bolt Diameter (inch) - 0.625
G (inch) - 2.08
H (inch) - 1.19
Pilot Diameter (K) inch - 6.375/6.373
L (inch) - 4.69
Z (inch) - 2.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GTM - Wide inner ring, medium duty, thin wall adapter locking

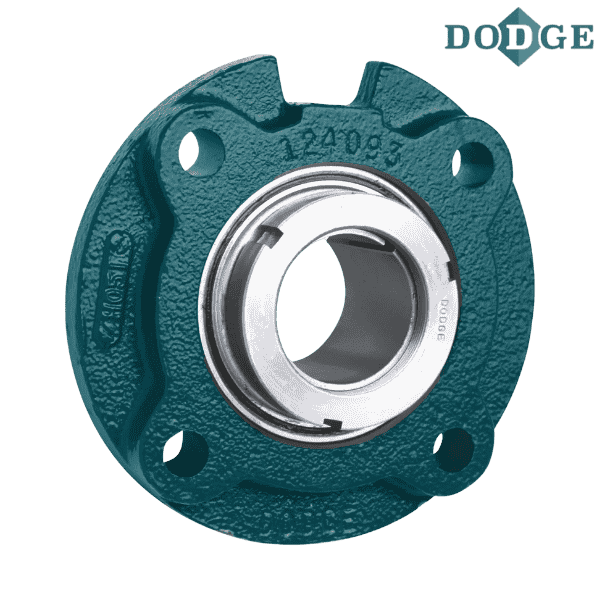

** Images are for representation purposes only
