129768 DODGE - FC-GTM-207

Brand - DODGE
Item Number - 129768 DODGE - FC-GTM-207

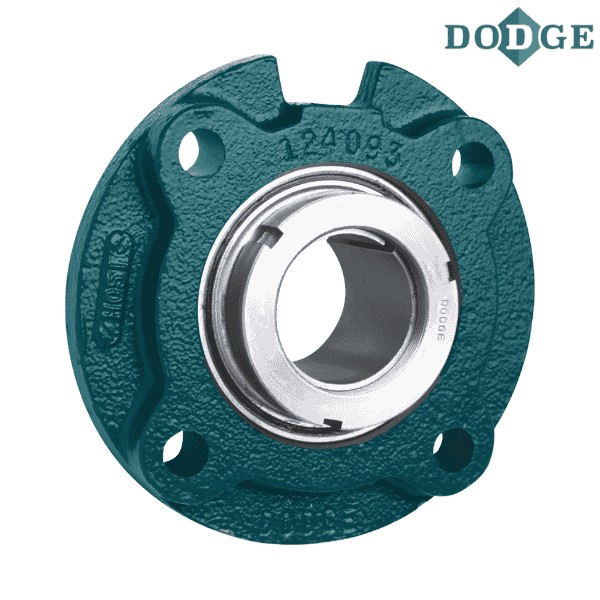

Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Piloted Flange Bearings)
Series - 214
Shaft Size (inch) - 2.4375
Description - FC-GTM-207
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129508
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-14
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136547
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-14-207-D
Weight (lbs) - 13.9

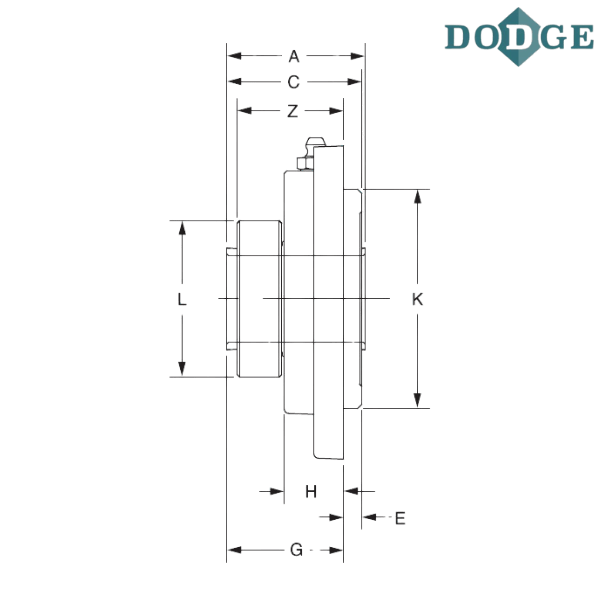

Length Through Bore (A) inch - 2.39

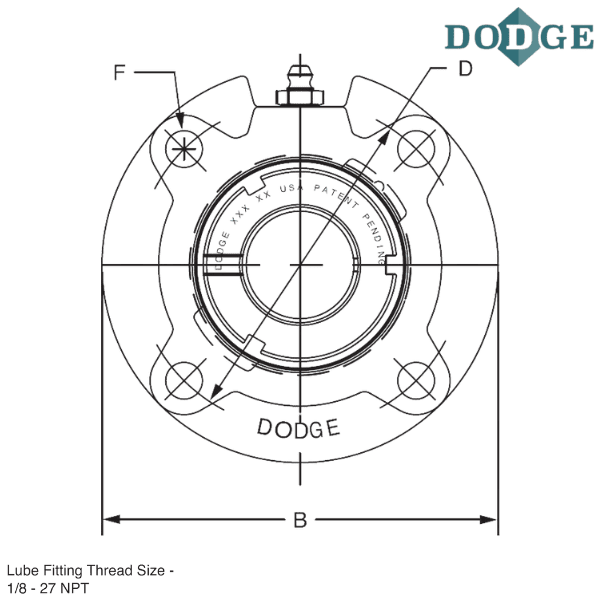

Overall Length (B) inch - 7.63
Thickness (C) inch - 2.86
Bolt Circle (D) inch - 6.5
Pilot Depth (E) inch - 1.13
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.74
H (inch) - 1.06
Pilot Diameter (K) inch - 5.500/5.498
L (inch) - 4
Z (inch) - 1.77
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
