129767 DODGE - FC-GTM-204

Brand - DODGE
Item Number - 129767 DODGE - FC-GTM-204
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Piloted Flange Bearings)
Series - 212
Shaft Size (inch) - 2.25
Description - FC-GTM-204
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129507
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-12
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136601
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-12-204-D
Weight (lbs) - 11.6

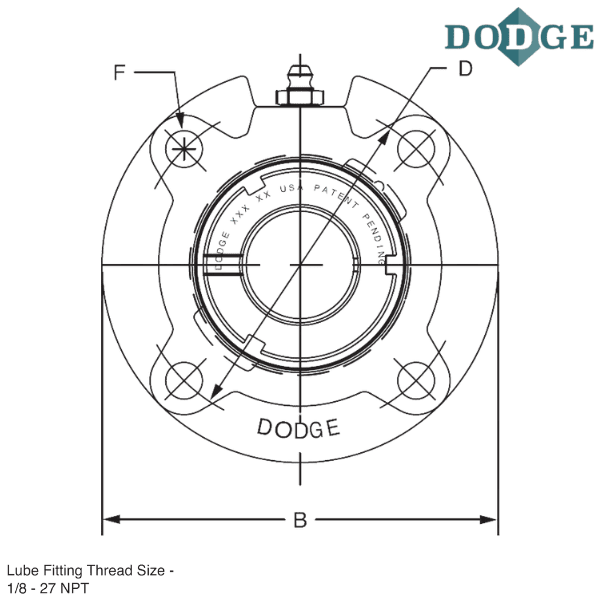

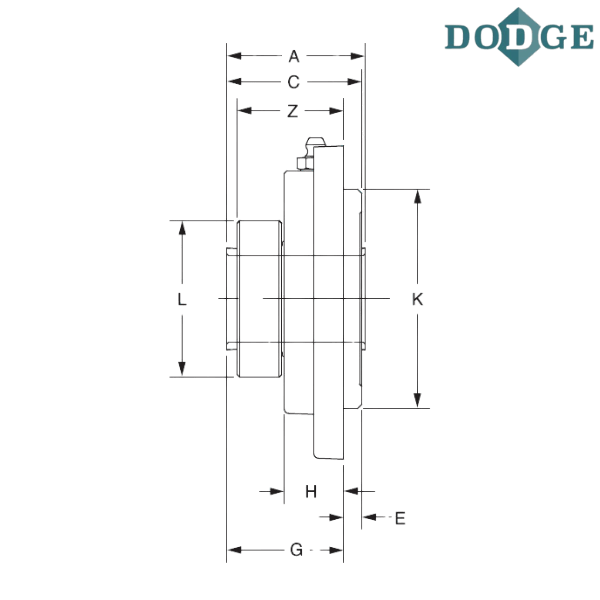

Length Through Bore (A) inch - 2.12
Overall Length (B) inch - 7.13
Thickness (C) inch - 2.52
Bolt Circle (D) inch - 6
Pilot Depth (E) inch - 0.88
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.65
H (inch) - 1
Pilot Diameter (K) inch - 5.000/4.998
L (inch) - 3.69
Z (inch) - 1.71
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GTM - Wide inner ring, medium duty, thin wall adapter locking

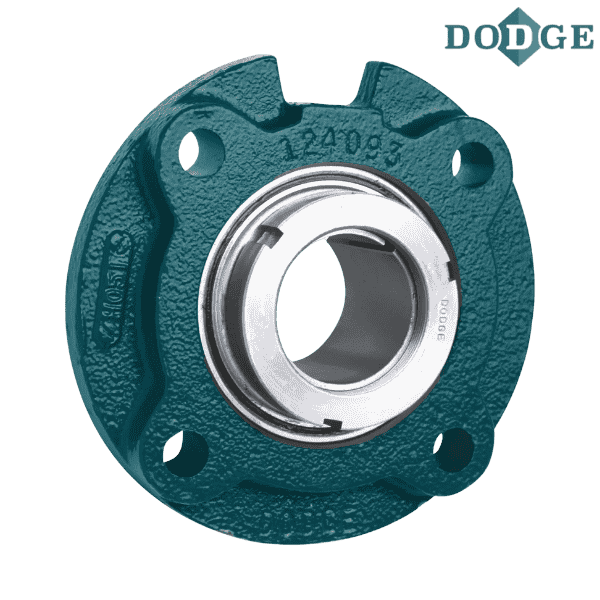

** Images are for representation purposes only
