129758 DODGE - FC-GTM-100

Brand - DODGE
Item Number - 129758 DODGE - FC-GTM-100
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Piloted Flange Bearings)
Series - 206
Shaft Size (inch) - 1
Description - FC-GTM-100
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129501
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-06
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136541
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-06-100-D
Weight (lbs) - 3.1

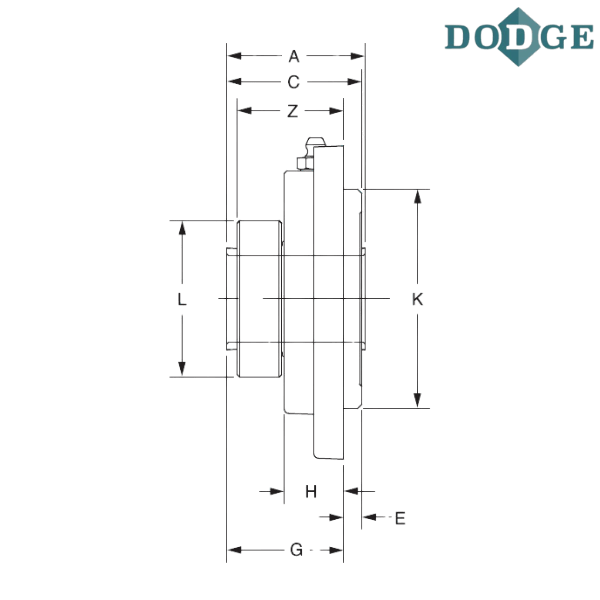

Length Through Bore (A) inch - 1.61

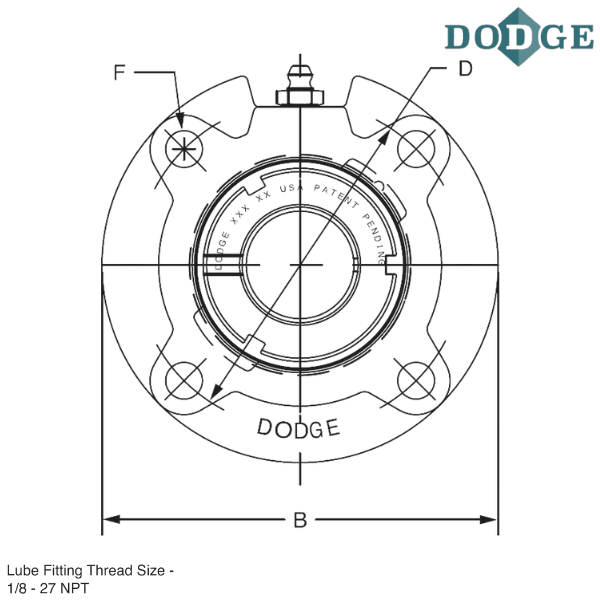

Overall Length (B) inch - 4.38
Thickness (C) inch - 1.68
Bolt Circle (D) inch - 3.63
Pilot Depth (E) inch - 0.25
F-Bolt Diameter (inch) - 0.375
G (inch) - 1.43
H (inch) - 0.81
Pilot Diameter (K) inch - 3.000/2.998
L (inch) - 2.08
Z (inch) - 1.46
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GTM - Wide inner ring, medium duty, thin wall adapter locking

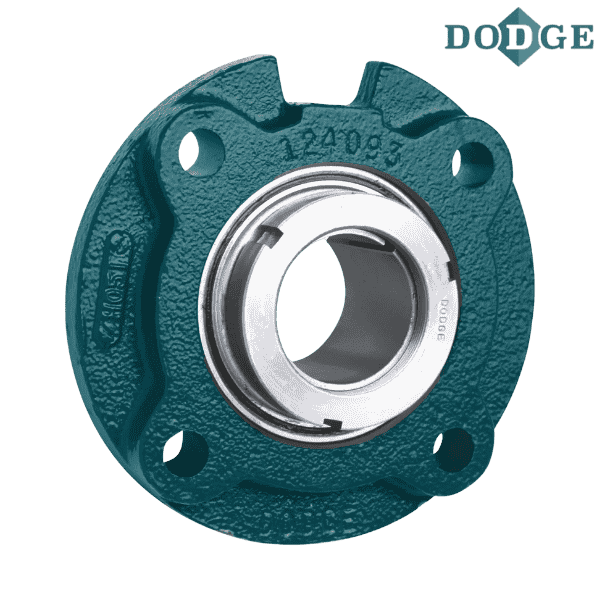

** Images are for representation purposes only
