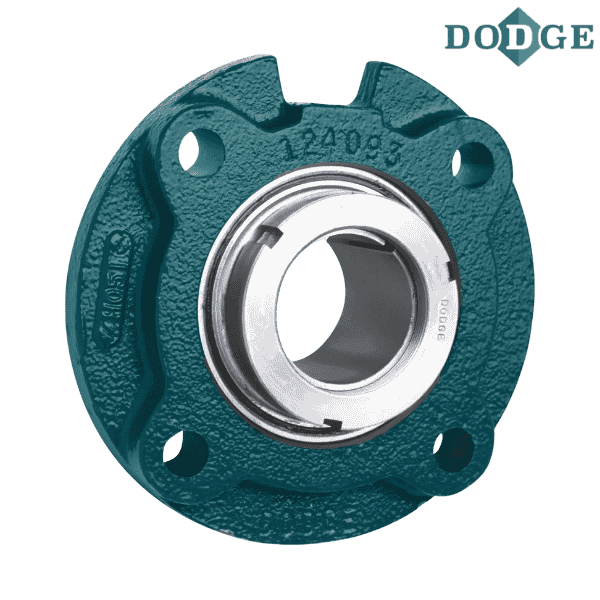

129757 DODGE - FC-GT-70M

Brand - DODGE
Item Number - 129757 DODGE - FC-GT-70M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Piloted Flange Bearings)
Series - 214
Shaft Size (mm) - 70
Description - FC-GT-70M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129508
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-14
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136560
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-14-70M-D
Weight (kg) - 5.8

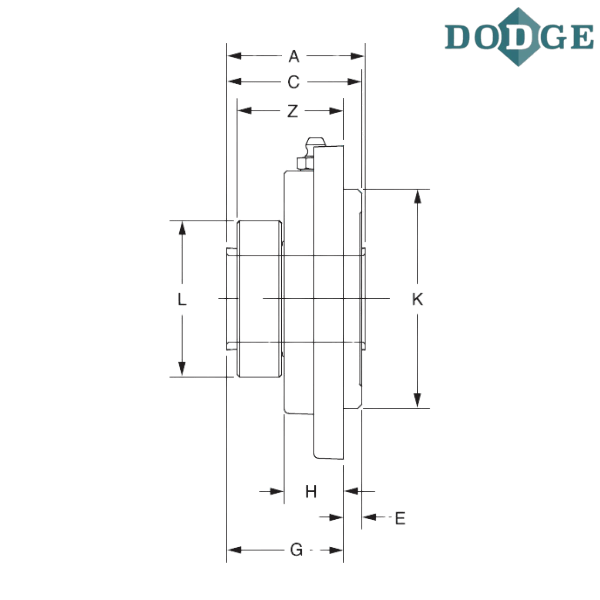

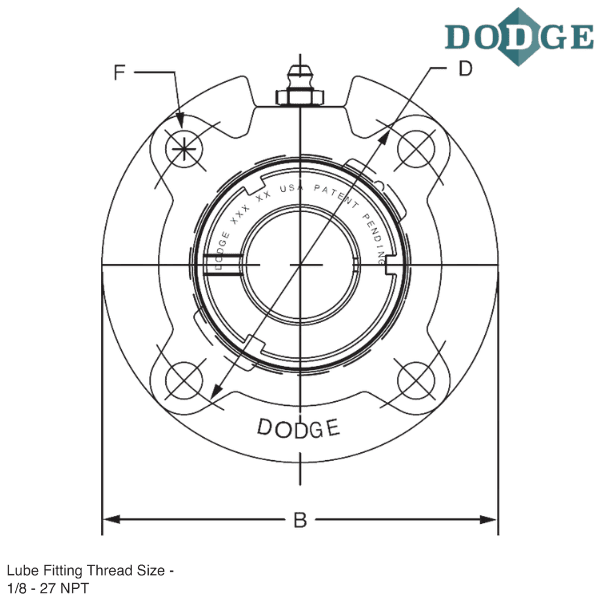

Length Through Bore (A) mm - 60.7
Overall Length (B) mm - 193.8
Thickness (C) mm - 72.6
Bolt Circle (D) mm - 165.1
Pilot Depth (E) mm - 28.7
F-Bolt Diameter - M12
G (mm) - 44.2
H (mm) - 26.9
Pilot Diameter (K) mm - 139.70/139.65
L (mm) - 101.6
Z (mm) - 45
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
