129744 DODGE - FC-GT-112

Brand - DODGE
Item Number - 129744 DODGE - FC-GT-112
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Piloted Flange Bearings)
Series - 209
Shaft Size (inch) - 1.75
Description - FC-GT-112
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129504
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-09
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136533
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-09-112-D
Weight (lbs) - 6.1

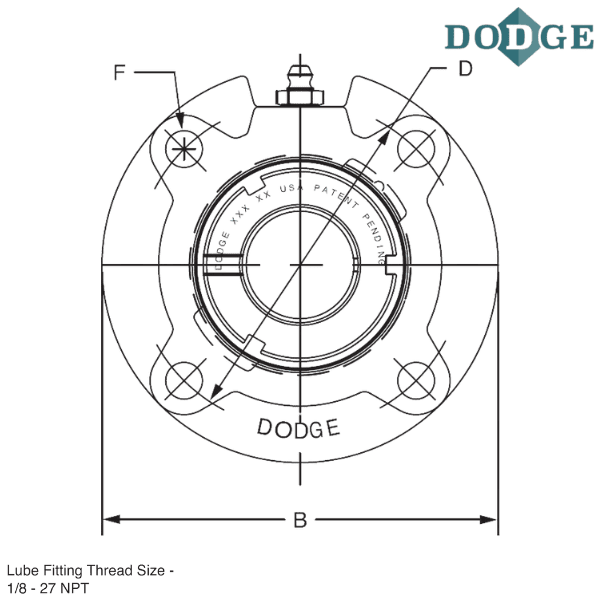

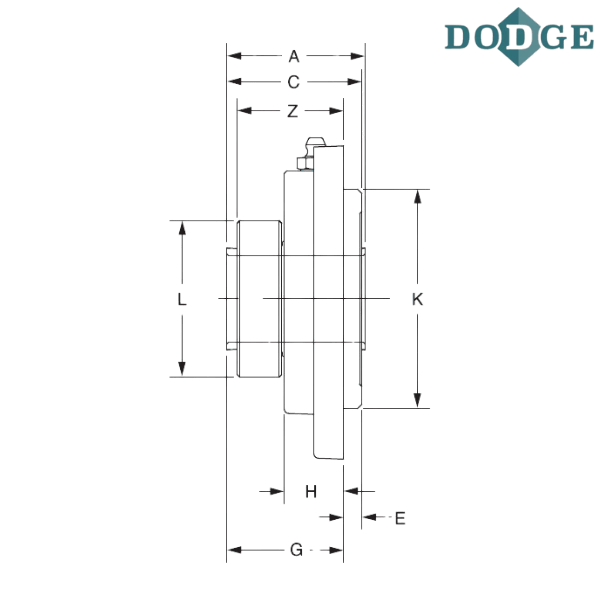

Length Through Bore (A) inch - 1.85
Overall Length (B) inch - 5.75
Thickness (C) inch - 1.97
Bolt Circle (D) inch - 4.75
Pilot Depth (E) inch - 0.44
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.53
H (inch) - 0.91
Pilot Diameter (K) inch - 4.000/3.998
L (inch) - 2.86
Z (inch) - 1.57
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GT - Wide inner ring, normal duty, thin wall adapter locking

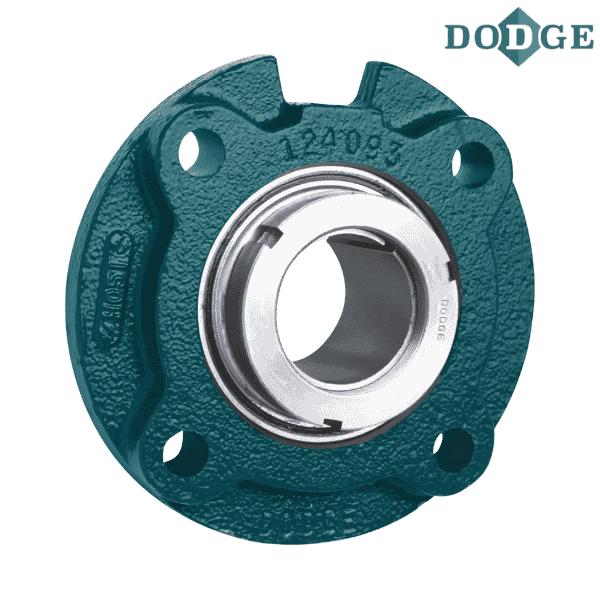

** Images are for representation purposes only
