Description
Brand - DODGE
Item Number - 129731 DODGE - F4B-GTEZ-108-SHCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Stainless Steel 4-Bolt Flange Bearings)
Series - 208
Shaft Size (inch) - 1.5
Description - F4B-GTEZ-108-SHCR
Part Number (Unit Without Adapter) - 129571
Description (Unit Without Adapter) - F4B-GTEZ-08-SHCR
Part Number (Adapter & Nut Assembly) - 129975
Description (Adapter & Nut Assembly) - AN-GT-08-108-CR
Weight (lbs) - 4.21

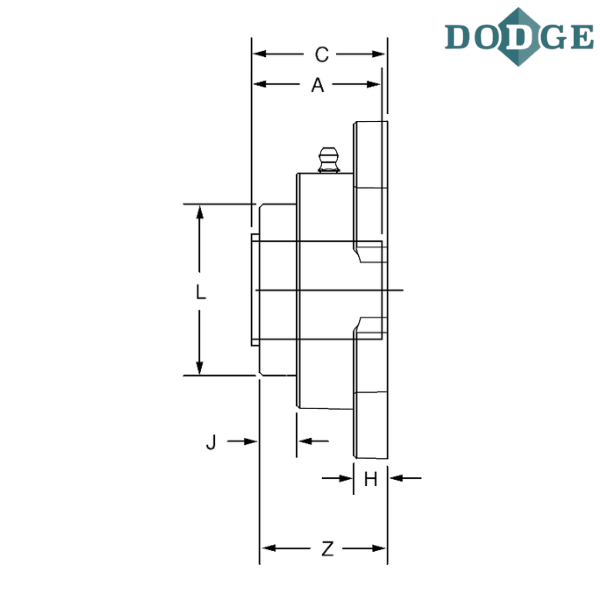

Length Through Bore (A) inch - 1.84
Overall Length (B) inch - 5.06
Thickness (C) inch - 2.01
Bolt Center to Center Length (D) inch - 4
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.43
J (inch) - 0.67
L (inch) - 2.62
Z (inch) - 2.02
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
