129724 DODGE - F4B-GTEZ-25M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 129724 DODGE - F4B-GTEZ-25M-SHCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Stainless Steel 4-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - F4B-GTEZ-25M-SHCR
Part Number (Unit Without Adapter) - 129568
Description (Unit Without Adapter) - F4B-GTEZ-05-SHCR
Part Number (Adapter & Nut Assembly) - 129981
Description (Adapter & Nut Assembly) - AN-GT-05-25M-CR
Weight (kg) - 0.73

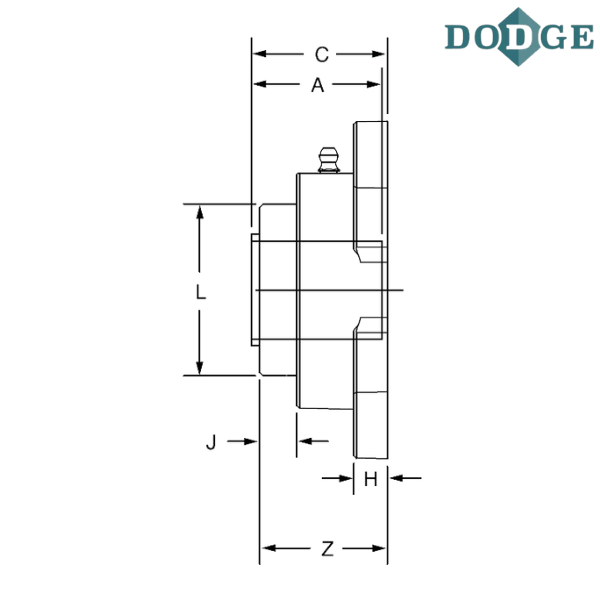

Length Through Bore (A) mm - 37.1
Overall Length (B) mm - 95.3
Thickness (C) mm - 39.9
Bolt Center to Center Length (D) mm - 69.9
F-Bolt Diameter - M10
H (mm) - 9.4
J (mm) - 15.5
L (mm) - 45.7
Z (mm) - 40.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
