129372 DODGE - P2B-GTB-110

Brand - DODGE
Item Number - 129372 DODGE - P2B-GTB-110

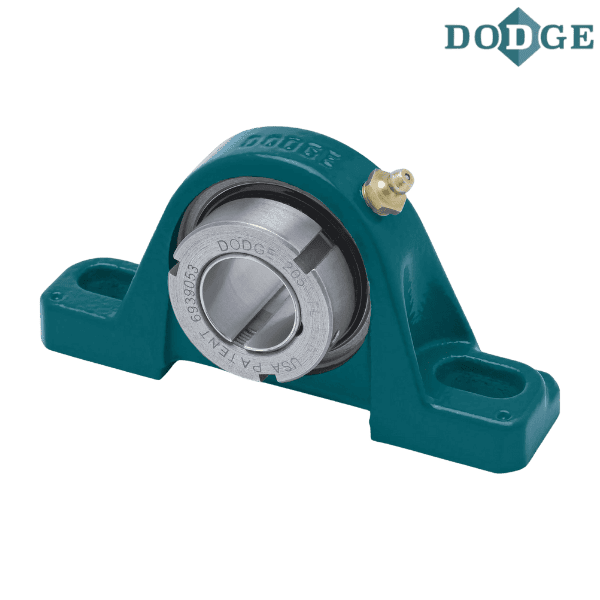

Category - GRIP TIGHT Adapter Ball Bearings (GTB Normal Duty Pillow Blocks)
Series - 208
Shaft Size (inch) - 1.625
Description - P2B-GTB-110
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129437
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTB-08
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136592
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-08-110-D
Weight (lbs) - 5.9

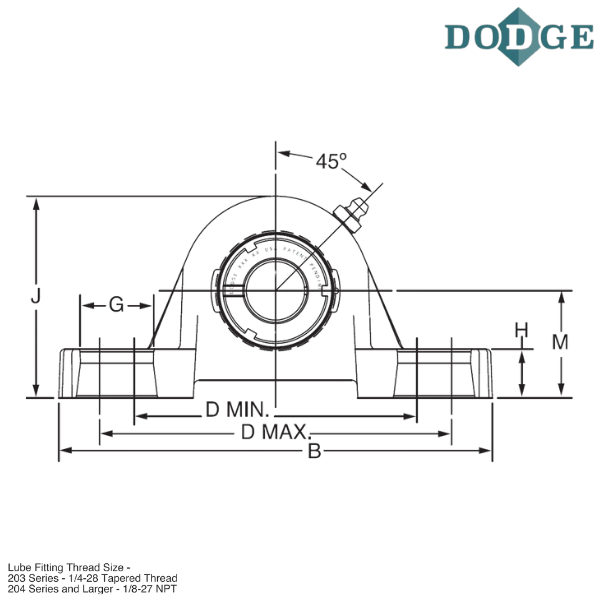

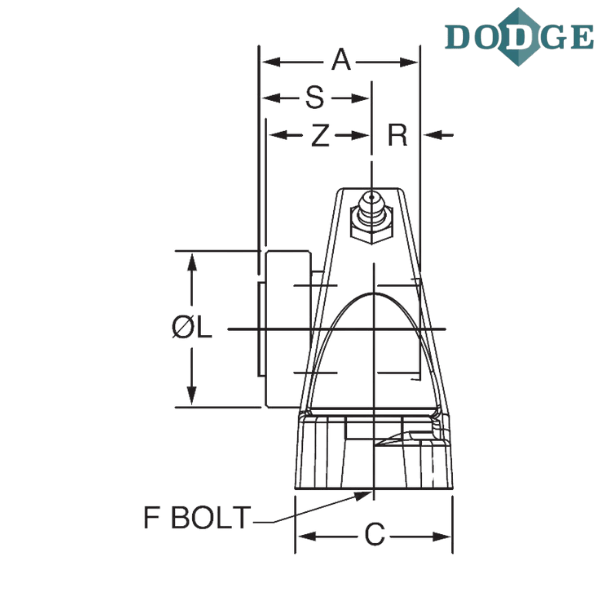

Length Through Bore (A) inch - 1.84
Overall Length (B) inch - 7.25
Width (C) inch - 1.93
Bolt to Bolt Minimum Distance (D min) inch - 5.18
Bolt to Bolt Maximum Distance (D max) inch - 5.88
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.91
H (inch) - 0.75
Overall Height (J) inch - 4
L (inch) - 2.62
Base to Center Height (M) inch - 1.94
R (inch) - 0.61
S (inch) - 1.23

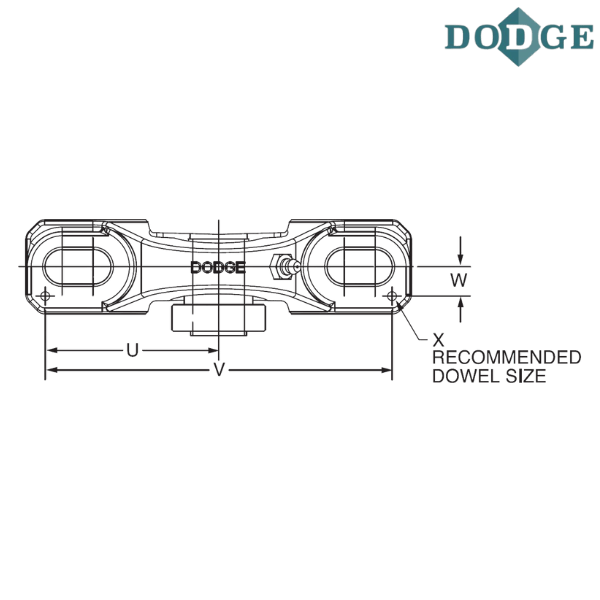

U (inch) - 3.26
V (inch) - 6.52
W (inch) - 0.69
X (inch) - 0.12
Z (inch) - 1.23
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
B - Low backing height pillow block

** Images are for representation purposes only
