129368 DODGE - F2B-GTEZ-50M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 129368 DODGE - F2B-GTEZ-50M-SHCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Stainless Steel 2-Bolt Flange Bearings)
Series - 210
Shaft Size (mm) - 50
Description - F2B-GTEZ-50M-SHCR
Part Number (Unit Without Adapter) - 129578
Description (Unit Without Adapter) - F2B-GTEZ-10-SHCR
Part Number (Adapter & Nut Assembly) - 129986
Description (Adapter & Nut Assembly) - AN-GT-10-50M-CR
Weight (kg) - 2.2

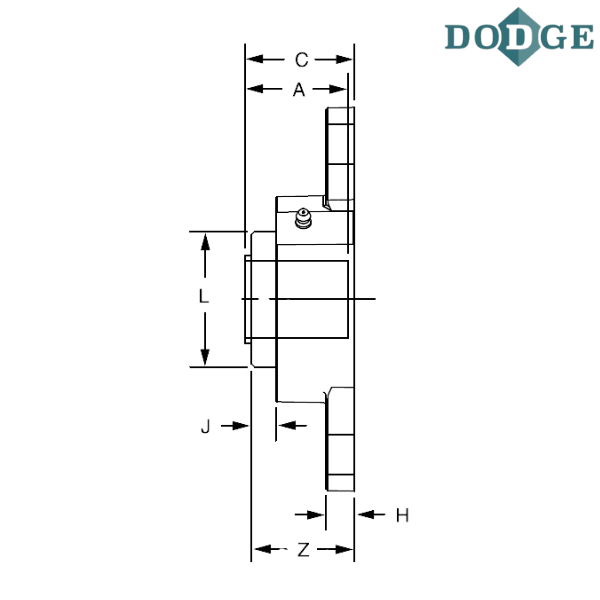

Length Through Bore (A) mm - 47.2
Overall Length (B) mm - 190
Thickness (C) inch - 51.6
Bolt Center to Center Length (D) mm - 157
F-Bolt Diameter - M16
H (mm) - 12.2
J (mm) - 17.8
L (mm) - 79.5
Overall Width (M) mm - 109.5
Z (mm) - 52.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
