Description
Brand - DODGE
Item Number - 129367 DODGE - F2B-GTEZ-115-SHCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Stainless Steel 2-Bolt Flange Bearings)
Series - 210
Shaft Size (inch) - 1.9375
Description - F2B-GTEZ-115-SHCR
Part Number (Unit Without Adapter) - 129578
Description (Unit Without Adapter) - F2B-GTEZ-10-SHCR
Part Number (Adapter & Nut Assembly) - 129978
Description (Adapter & Nut Assembly) - AN-GT-10-115-CR
Weight (lbs) - 4.89

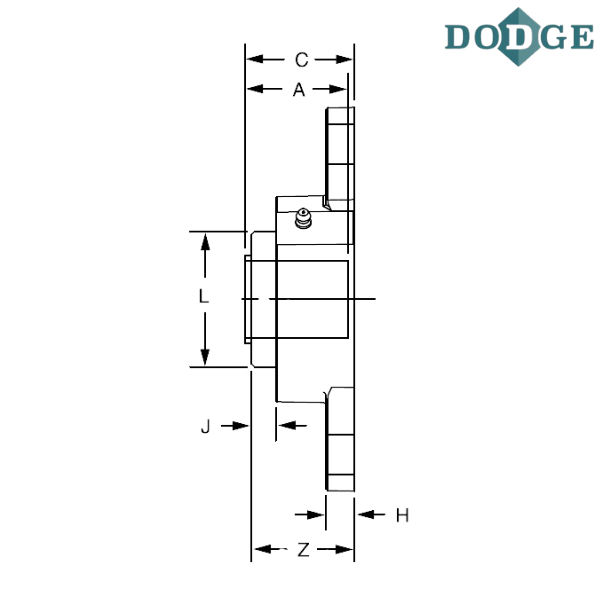

Length Through Bore (A) inch - 1.86
Overall Length (B) inch - 7.48
Thickness (C) inch - 2.03
Bolt Center to Center Length (D) inch - 6.18
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.48
J (inch) - 0.7
L (inch) - 3.13
Overall Width (M) inch - 4.31
Z (inch) - 2.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2-bolt flange
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
