Description
Brand - DODGE
Item Number - 129364 DODGE - F2B-GTEZ-35M-SHCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Stainless Steel 2-Bolt Flange Bearings)
Series - 207
Shaft Size (mm) - 35
Description - F2B-GTEZ-35M-SHCR
Part Number (Unit Without Adapter) - 129576
Description (Unit Without Adapter) - F2B-GTEZ-07-SHCR
Part Number (Adapter & Nut Assembly) - 129983
Description (Adapter & Nut Assembly) - AN-GT-07-35M-CR
Weight (kg) - 1.42

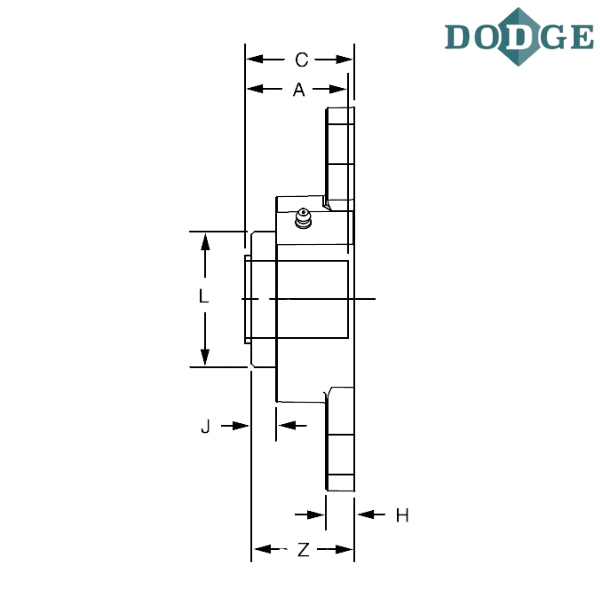

Length Through Bore (A) mm - 41.1
Overall Length (B) mm - 157
Thickness (C) inch - 45.7
Bolt Center to Center Length (D) mm - 130
F-Bolt Diameter - M12
H (mm) - 10.7
J (mm) - 16.3
L (mm) - 60.5
Overall Width (M) mm - 88.9
Z (mm) - 47.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2-bolt flange
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
