129359 DODGE - F2B-GTEZ-103-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 129359 DODGE - F2B-GTEZ-103-SHCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Stainless Steel 2-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.1875
Description - F2B-GTEZ-103-SHCR
Part Number (Unit Without Adapter) - 129575
Description (Unit Without Adapter) - F2B-GTEZ-06-SHCR
Part Number (Adapter & Nut Assembly) - 129970
Description (Adapter & Nut Assembly) - AN-GT-06-103-CR
Weight (lbs) - 2.17

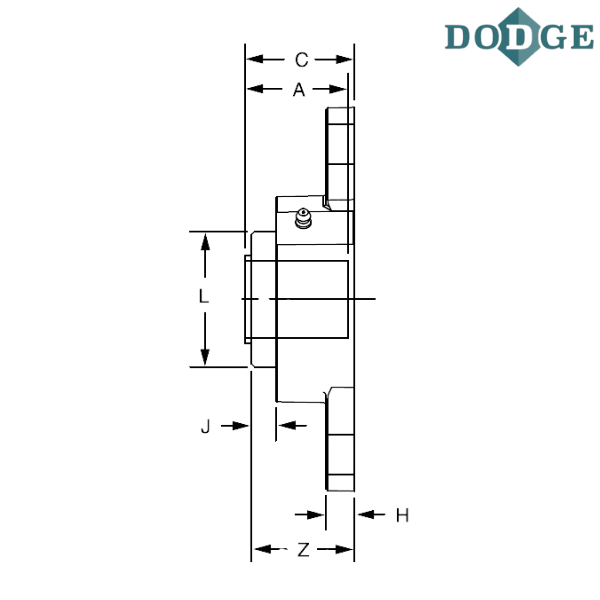

Length Through Bore (A) inch - 1.61
Overall Length (B) inch - 5.51
Thickness (C) inch - 1.75
Bolt Center to Center Length (D) inch - 4.59
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.35
J (inch) - 0.65
L (inch) - 2.08
Overall Width (M) inch - 3.13
Z (inch) - 1.78
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
