129356 DODGE - F2B-GTEZ-20M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 129356 DODGE - F2B-GTEZ-20M-SHCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Stainless Steel 2-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - F2B-GTEZ-20M-SHCR
Part Number (Unit Without Adapter) - 129573
Description (Unit Without Adapter) - F2B-GTEZ-04-SHCR
Part Number (Adapter & Nut Assembly) - 129980
Description (Adapter & Nut Assembly) - AN-GT-04-20M-CR
Weight (kg) - 0.49

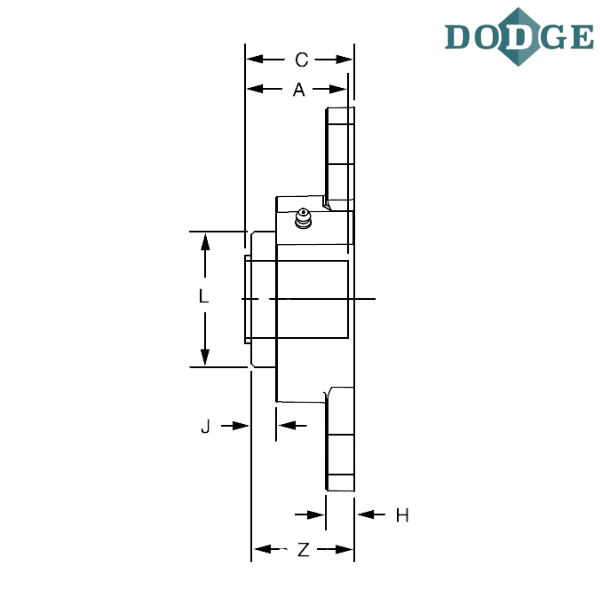

Length Through Bore (A) mm - 37.6
Overall Length (B) mm - 111.3
Thickness (C) inch - 39.1
Bolt Center to Center Length (D) mm - 90
F-Bolt Diameter - M10
H (mm) - 8.1
J (mm) - 16.8
L (mm) - 38.1
Overall Width (M) mm - 60.5
Z (mm) - 39.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
