129336 DODGE - F2B-GTM-115

Brand - DODGE
Item Number - 129336 DODGE - F2B-GTM-115
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty 2-Bolt Flange Bearings)
Series - 211
Shaft Size (inch) - 1.9375
Description - F2B-GTM-115
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129498
Description (Unit without Adapter Sleeve and Lock Nut) - F2B-GT-11
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136545
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-11-115-D
Weight (lbs) - 8.1

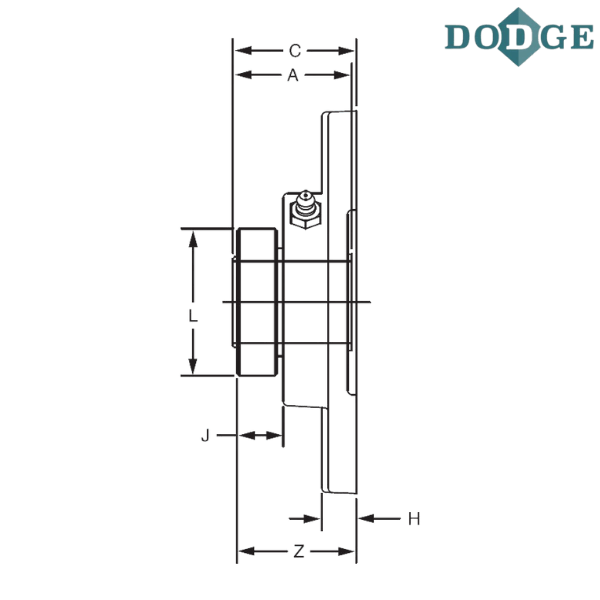

Length Through Bore (A) inch - 1.93
Overall Length (B) inch - 8.63
Thickness (C) inch - 2.19

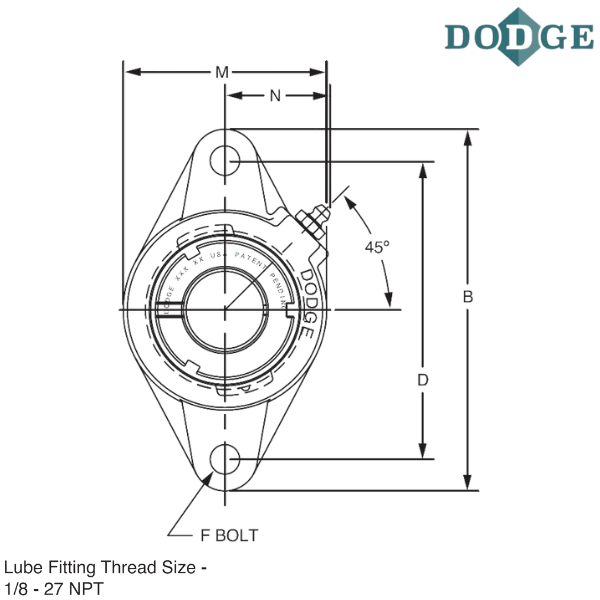

Bolt Center to Center Length (D) inch - 7.25
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.67
J (inch) - 0.65
L (inch) - 3.43
Overall Width (M) inch - 5.25
N (inch) - 2.27
Z (inch) - 2.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
