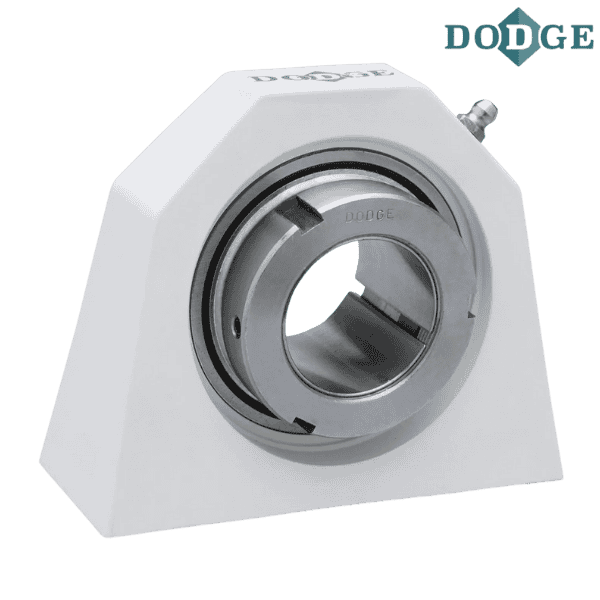

129300 DODGE - TB-GTEZ-35M-PCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 129300 DODGE - TB-GTEZ-35M-PCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Polymer Housed Tapped Base Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - TB-GTEZ-35M-PCR
Part Number (Unit Without Adapter) - 129991
Description (Unit Without Adapter) - TB-GTEZ-07M-PCR
Part Number (Adapter & Nut Assembly) - 129983
Description (Adapter & Nut Assembly) - AN-GT-07-35M-CR
Weight (kg) - 1.11

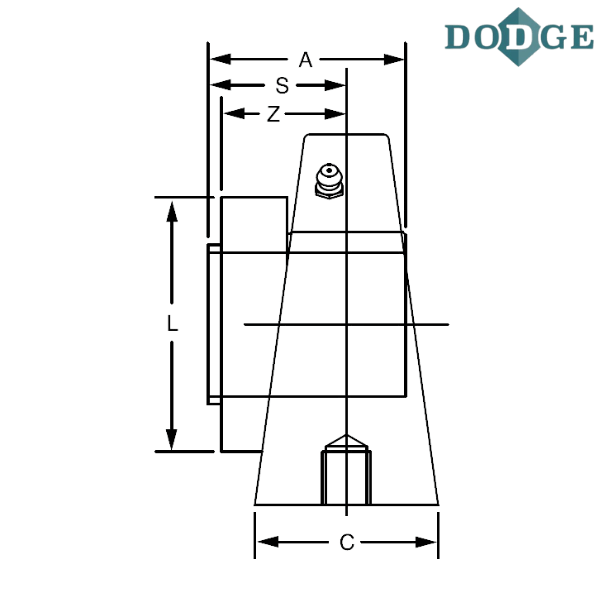

Length Through Bore (A) mm - 41.1

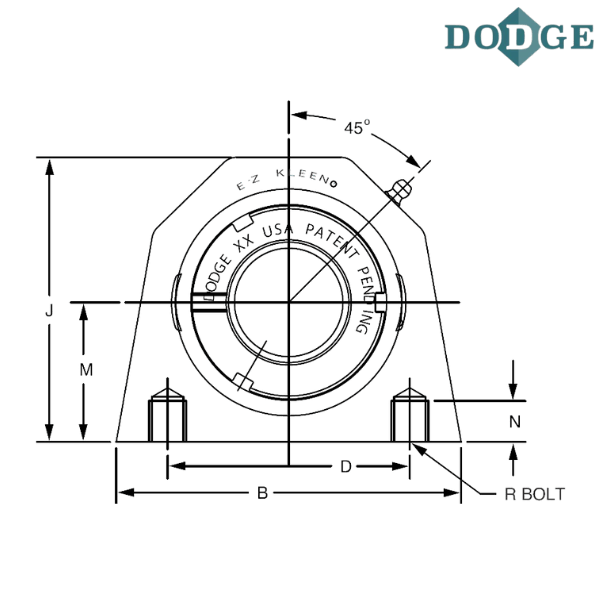

Overall Length (B) mm - 117.6
Width (C) mm - 48
Bolt Center to Center Length (D) mm - 82.6
Overall Height (J) mm - 97
L (mm) - 60.5
Base to Center Height (M) mm - 47.6
Thread Depth (N) mm - 14
Bolt Hole Threads (R) mm - M12x1.75
S (mm) - 27.4
Z (mm) - 29
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
CR - Corrosion resistant insert

** Images are for representation purposes only
