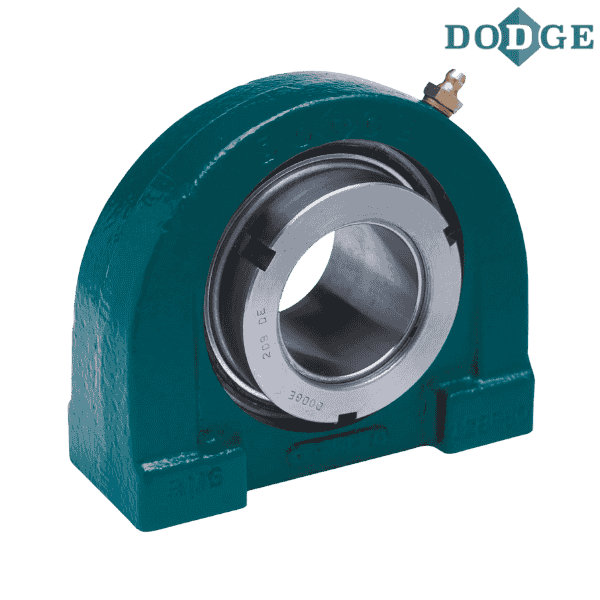

129287 DODGE - TB-GT-111

Brand - DODGE
Item Number - 129287 DODGE - TB-GT-111
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Tapped Base Pillow Blocks)
Series - 209
Shaft Size (inch) - 1.6875
Description - TB-GT-111
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129462
Description (Unit without Adapter Sleeve and Lock Nut) - TB-GT-09
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136532
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-09-111-D
Weight (lbs) - 6.7

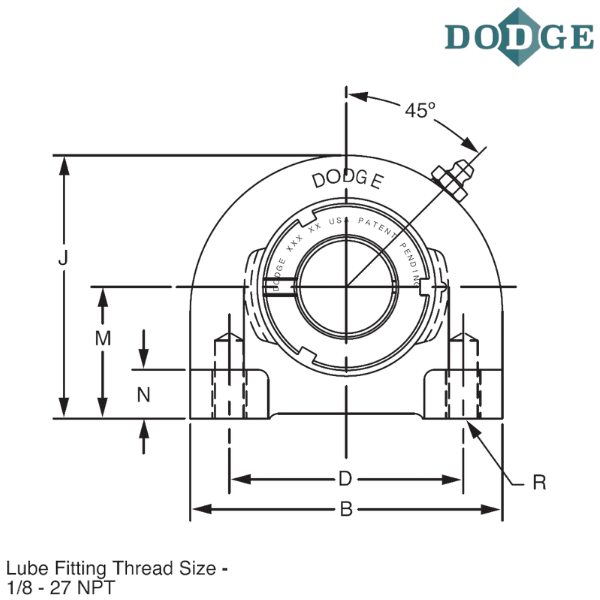

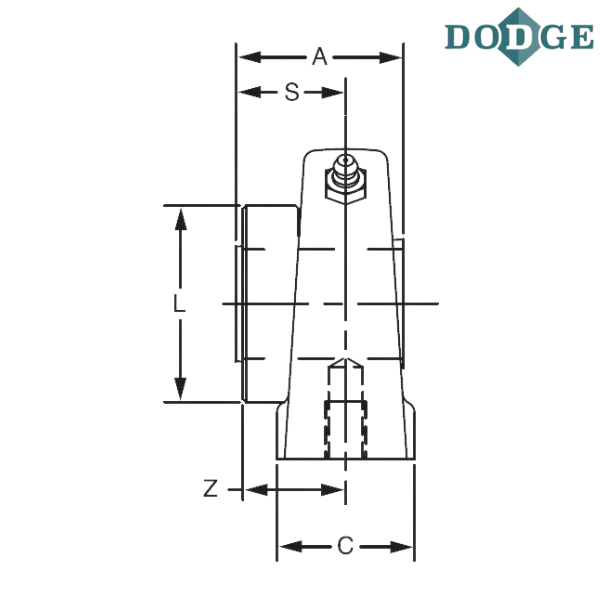

Length Through Bore (A) inch - 1.85
Overall Length (B) inch - 5
Width (C) inch - 2
Bolt Center to Center Length (D) inch - 3.75
Overall Height (J) inch - 4.25
L (inch) - 2.86
Base to Center Height (M) inch - 2.13
N (inch) - 0.75
UNC -Thread (R) inch - 0.5-13
S (inch) - 1.23
Z (inch) - 1.26
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
