129284 DODGE - TB-GT-107

Brand - DODGE
Item Number - 129284 DODGE - TB-GT-107
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Tapped Base Pillow Blocks)
Series - 207
Shaft Size (inch) - 1.4375
Description - TB-GT-107
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129460
Description (Unit without Adapter Sleeve and Lock Nut) - TB-GT-07
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136529
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-07-107-D
Weight (lbs) - 4.6

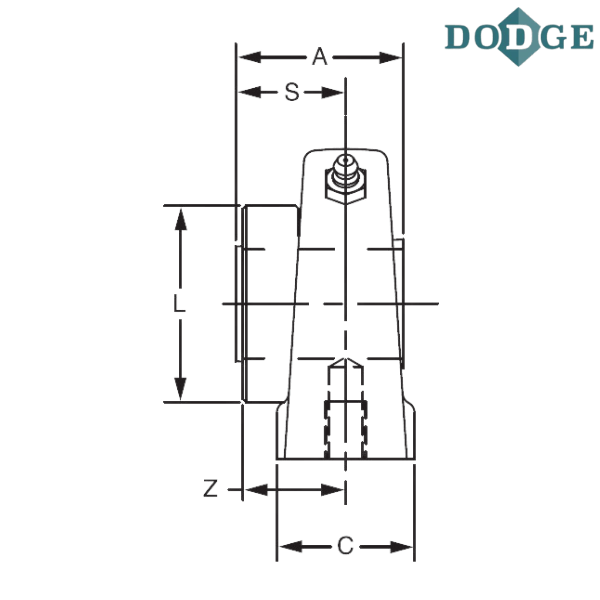

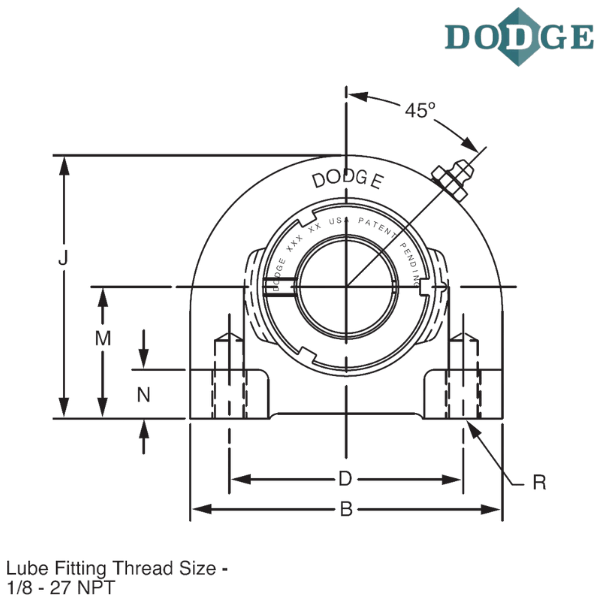

Length Through Bore (A) inch - 1.62
Overall Length (B) inch - 4.25
Width (C) inch - 1.88
Bolt Center to Center Length (D) inch - 3.25
Overall Height (J) inch - 3.75
L (inch) - 2.38
Base to Center Height (M) inch - 1.88
N (inch) - 0.75
UNC -Thread (R) inch - 0.5-13
S (inch) - 1.08
Z (inch) - 1.14
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
