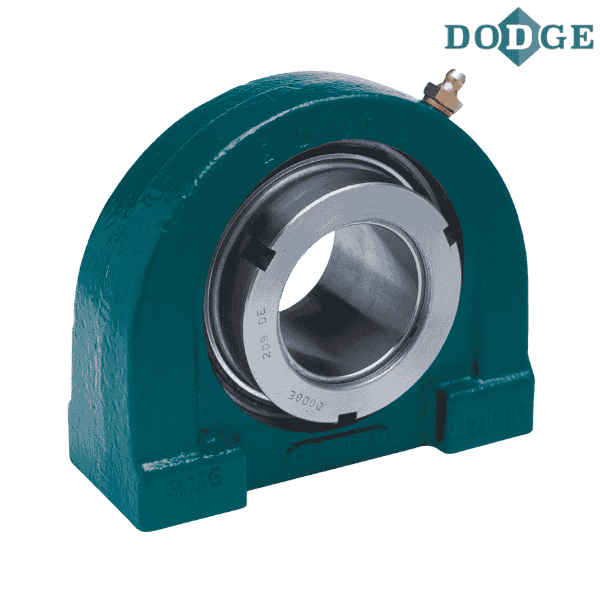

129276 DODGE - TB-GT-012

Brand - DODGE
Item Number - 129276 DODGE - TB-GT-012
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Tapped Base Pillow Blocks)
Series - 204
Shaft Size (inch) - 0.75
Description - TB-GT-012
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129457
Description (Unit without Adapter Sleeve and Lock Nut) - TB-GT-04
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136522
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-04-012-D
Weight (lbs) - 1.9

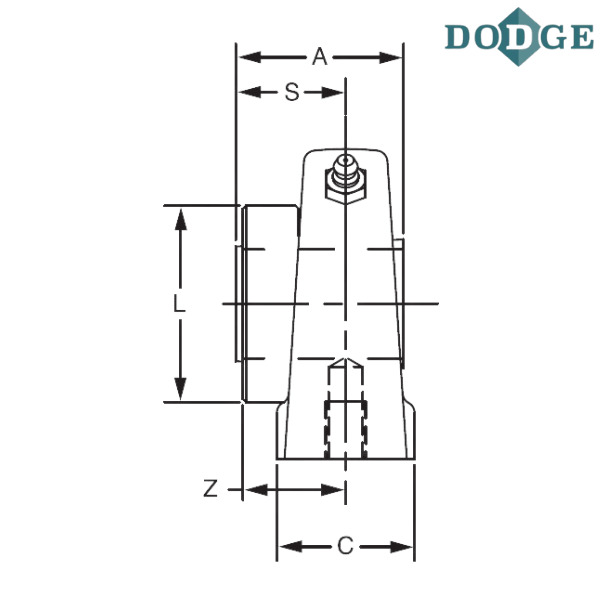

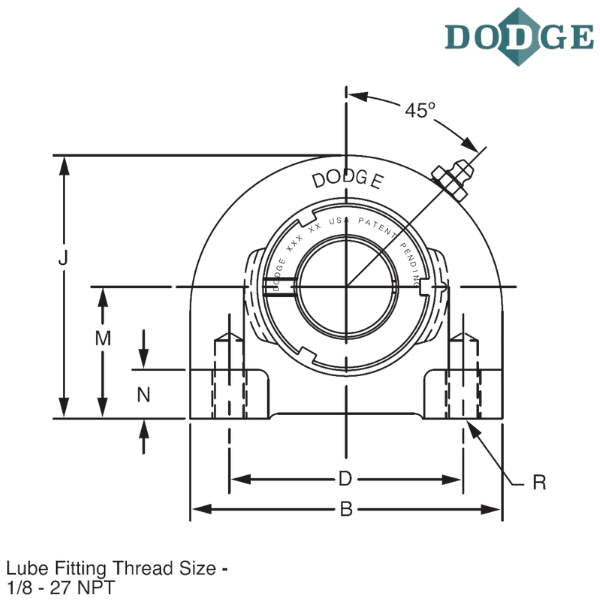

Length Through Bore (A) inch - 1.48
Overall Length (B) inch - 2.88
Width (C) inch - 1.5
Bolt Center to Center Length (D) inch - 2
Overall Height (J) inch - 2.56
L (inch) - 1.5
Base to Center Height (M) inch - 1.31
N (inch) - 0.5
UNC -Thread (R) inch - 0.375-16
S (inch) - 1.02
Z (inch) - 1.03
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
