Description
Brand - DODGE
Item Number - 129271 DODGE - P2B-GTEZ-108-SHCR
Category - E-Z Kleen Mounted Bearings (Complete Unit of GTEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 208
Description - P2B-GTEZ-108-SHCR
Shaft Size (inch) - 1.5
Weight (lbs) - 4.9

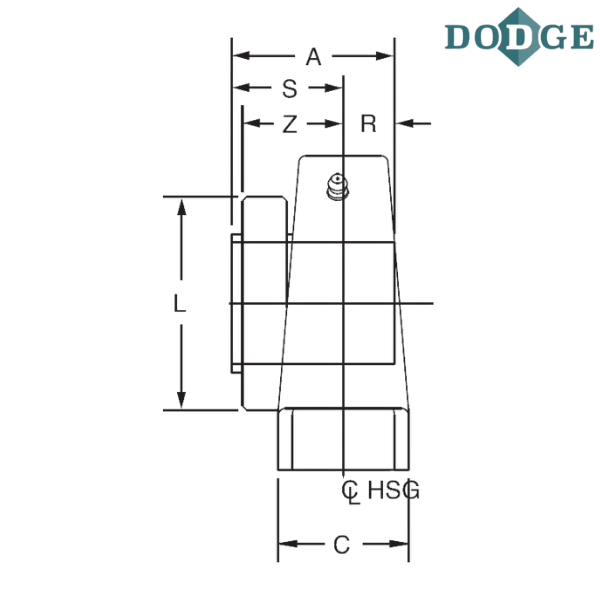

Length Through Bore (A) inch - 1.84
Overall Length (B) inch - 7
Width (C) inch - 1.5
Bolt to Bolt Minimum Distance (D min) inch - 5.18
Bolt to Bolt Maximum Distance (D max) inch - 6
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.97
H (inch) - 0.75
Overall Height (J) inch - 4
L (inch) - 2.62
Base to Center Height (M) inch - 2.13
R* (inch) - 0.61
S* (inch) - 1.23
Z (inch) - 1.23
Part Number (Unit Without Adapter) - 129563
Description (Unit Without Adapter) - P2B-GTEZ-08-SHCR
Part Number (Adapter & Nut Assembly) - 129975
Description (Adapter & Nut Assembly) - AN-GT-08-108-CR
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2 bolt base
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
* dimensions will vary slightly depending on true shaft diameter
** Images are for representation purposes only
