Description
Brand - DODGE
Item Number - 129265 DODGE - P2B-GTUEZ-103-SHCR
Category - E-Z Kleen Mounted Bearings (Complete Unit of GTEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 206 (GTU)
Description - P2B-GTUEZ-103-SHCR
Shaft Size (inch) - 1.1875
Weight (lbs) - 2.65

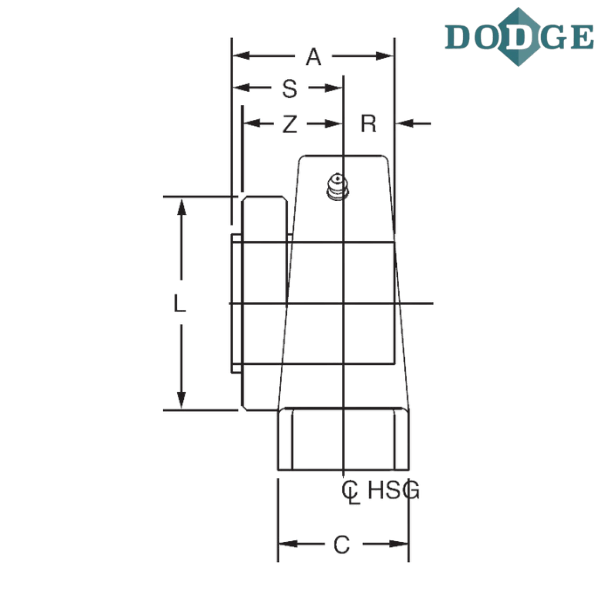

Length Through Bore (A) inch - 1.61
Overall Length (B) inch - 6.25
Width (C) inch - 1.25
Bolt to Bolt Minimum Distance (D min) inch - 4.26
Bolt to Bolt Maximum Distance (D max) inch - 5
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.93
H (inch) - 0.59
Overall Height (J) inch - 3.19
L (inch) - 2.08
Base to Center Height (M) inch - 1.69
R* (inch) - 0.52
S* (inch) - 1.09
Z (inch) - 1.13
Part Number (Unit Without Adapter) - 129566
Description (Unit Without Adapter) - P2B-GTUEZ-06-SHCR
Part Number (Adapter & Nut Assembly) - 129602
Description (Adapter & Nut Assembly) - AN-GT-06-103-CR
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2 bolt base
GT - Wide inner ring, normal duty, thin wall adapter locking
UEZ - higher back pillow block, E-Z KLEEN/ULTRA KLEEN (for interchangeability with competitive pillow blocks)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
* dimensions will vary slightly depending on true shaft diameter
** Images are for representation purposes only
