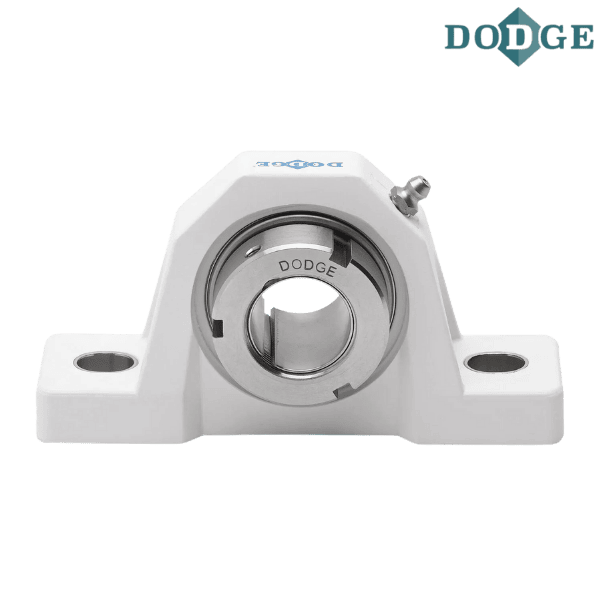

129259 DODGE - P2B-GTEZ-50M-PCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 129259 DODGE - P2B-GTEZ-50M-PCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Polymer Housed Pillow Blocks)
Series - 210
Shaft Size (mm) - 50
Description - P2B-GTEZ-50M-PCR
Part Number (Unit without Adapter) - 129534
Description (Unit without Adapter) - P2B-GTEZ-10-PCR
Part Number (Adapter & Nut Assembly) - 129986
Description ( (Adapter & Nut Assembly) - AN-GT-10-50M-CR
Weight (kg) - 1.7

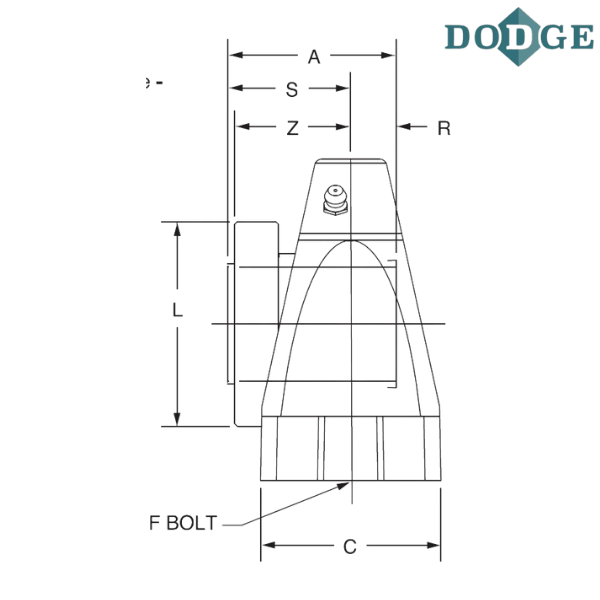

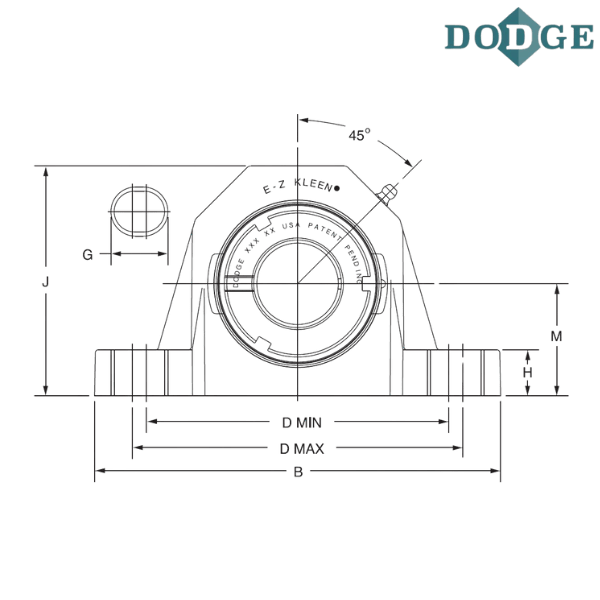

Length Through Bore (A) mm - 47.2
Overall Length (B) mm - 204.7
Thickness (C) mm - 59.9
Bolt to Bolt Minimum Distance (D min) mm - 152.4
Bolt to Bolt Maximum Distance (D max) mm - 166.6
F-Bolt Diameter - M16
G (mm) - 25.4
H (mm) - 23.1
Overall Height (J) mm - 115.8
L (mm) - 79.5
Base to Center Height (M) mm - 57.2
R (mm) - 16
S (mm) - 31.2
Z (mm) - 32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2 bolt base
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
CR - Corrosion resistant insert

** Images are for representation purposes only
