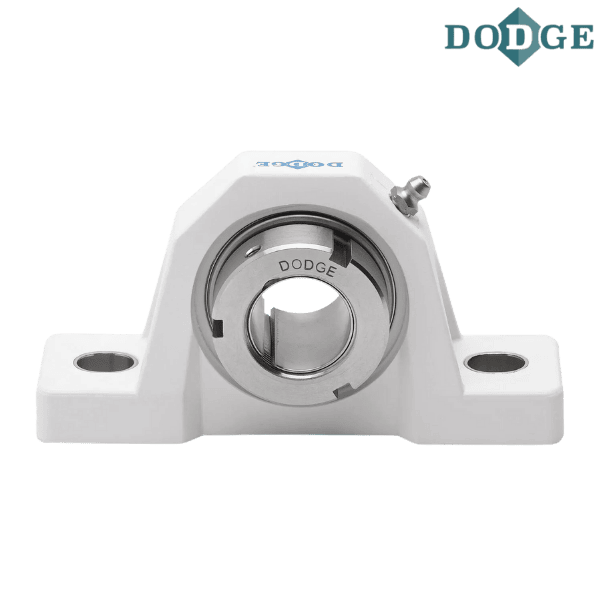

129253 DODGE - P2B-GTEZ-35M-PCR

Brand - DODGE
Item Number - 129253 DODGE - P2B-GTEZ-35M-PCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Polymer Housed Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - P2B-GTEZ-35M-PCR
Part Number (Unit without Adapter) - 129532
Description (Unit without Adapter) - P2B-GTEZ-07-PCR
Part Number (Adapter & Nut Assembly) - 129983
Description ( (Adapter & Nut Assembly) - AN-GT-07-35M-CR
Weight (kg) - 1.1

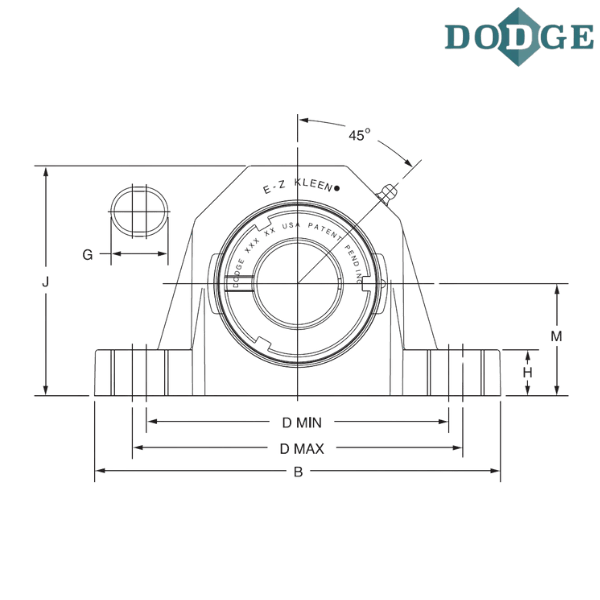

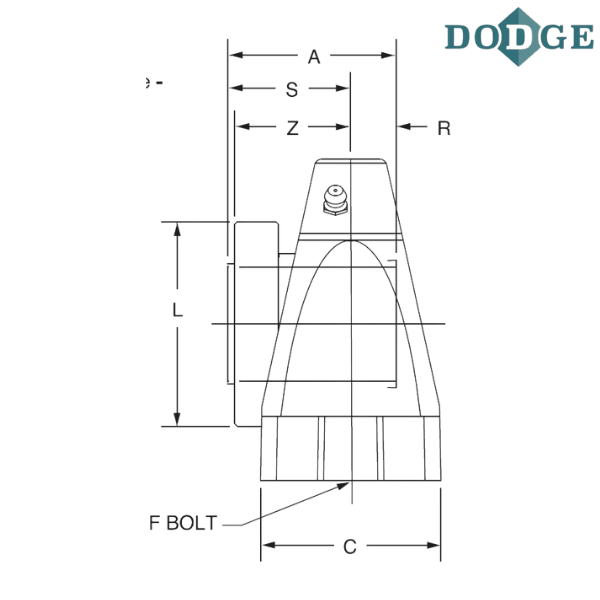

Length Through Bore (A) mm - 41.1
Overall Length (B) mm - 166.1
Thickness (C) mm - 47.2
Bolt to Bolt Minimum Distance (D min) mm - 121.9
Bolt to Bolt Maximum Distance (D max) mm - 130
F-Bolt Diameter - M12
G (mm) - 18.5
H (mm) - 18.3
Overall Height (J) mm - 98.8
L (mm) - 60.5
Base to Center Height (M) mm - 47.6
R (mm) - 13.7
S (mm) - 27.4
Z (mm) - 29
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2 bolt base
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
CR - Corrosion resistant insert

** Images are for representation purposes only
