129247 DODGE - P2B-GTEZ-25M-PCR

Brand - DODGE
Item Number - 129247 DODGE - P2B-GTEZ-25M-PCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Polymer Housed Pillow Blocks)
Series - 205
Shaft Size (mm) - 25
Description - P2B-GTEZ-25M-PCR
Part Number (Unit without Adapter) - 129531
Description (Unit without Adapter) - P2B-GTEZ-05-PCR
Part Number (Adapter & Nut Assembly) - 129981
Description ( (Adapter & Nut Assembly) - AN-GT-05-25M-CR
Weight (kg) - 0.5

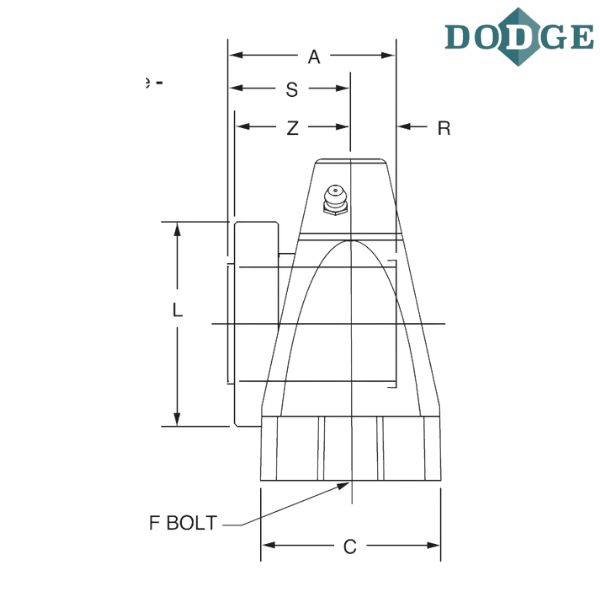

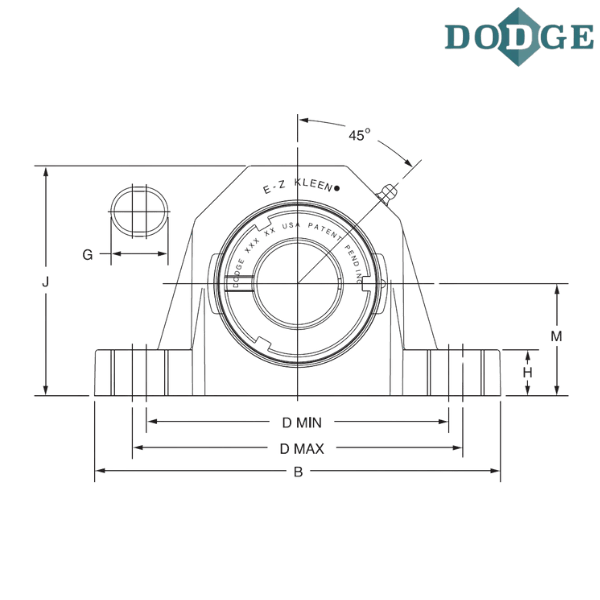

Length Through Bore (A) mm - 37.1
Overall Length (B) mm - 139.2
Thickness (C) mm - 37.6
Bolt to Bolt Minimum Distance (D min) mm - 100.6
Bolt to Bolt Maximum Distance (D max) mm - 106.7
F-Bolt Diameter - M10
G (mm) - 15
H (mm) - 15.5
Overall Height (J) mm - 72.6
L (mm) - 45.7
Base to Center Height (M) mm - 36.5
R (mm) - 12.2
S (mm) - 24.9
Z (mm) - 25.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2 bolt base
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
CR - Corrosion resistant insert

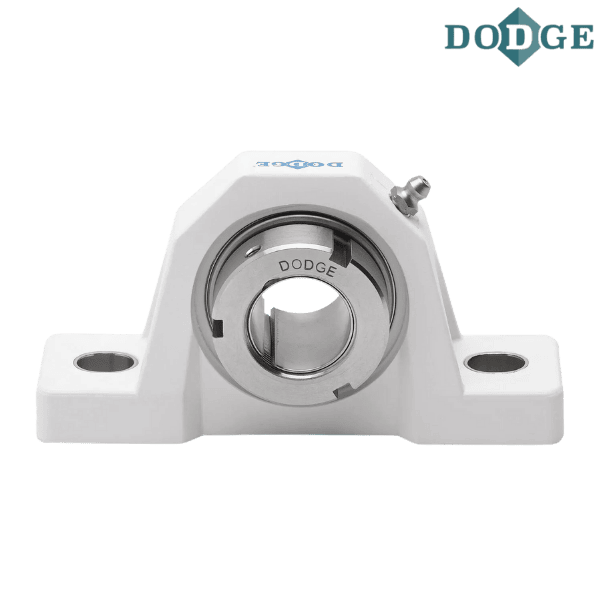

** Images are for representation purposes only
