Description
Brand - DODGE

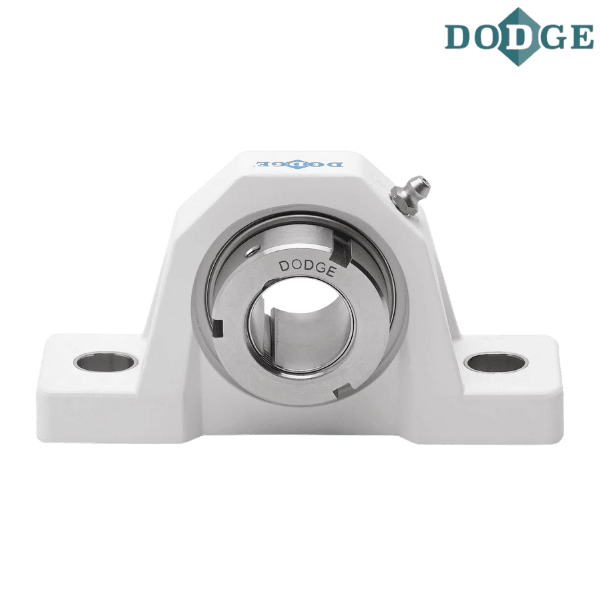

Item Number - 129246 DODGE - P2B-GTEZ-100-PCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Polymer Housed Pillow Blocks)
Series - 205
Shaft Size (inch) - 1
Description - P2B-GTEZ-100-PCR
Part Number (Unit without Adapter) - 129531
Description (Unit without Adapter) - P2B-GTEZ-05-PCR
Part Number (Adapter & Nut Assembly) - 129968
Description ( (Adapter & Nut Assembly) - AN-GT-05-100-CR
Weight (lbs) - 1.1

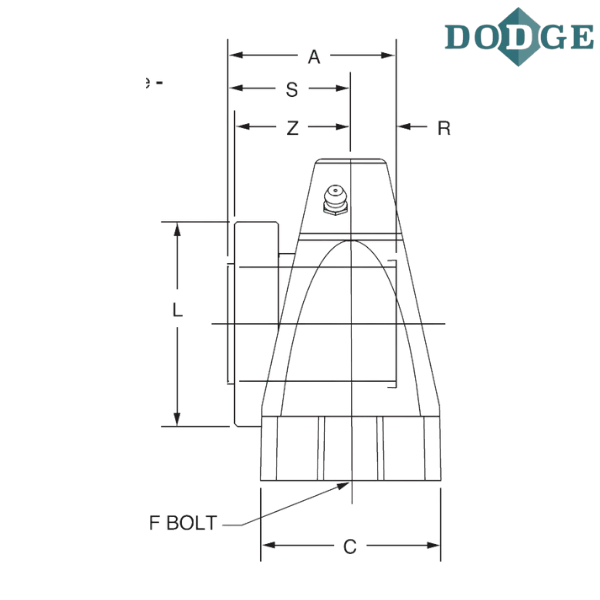

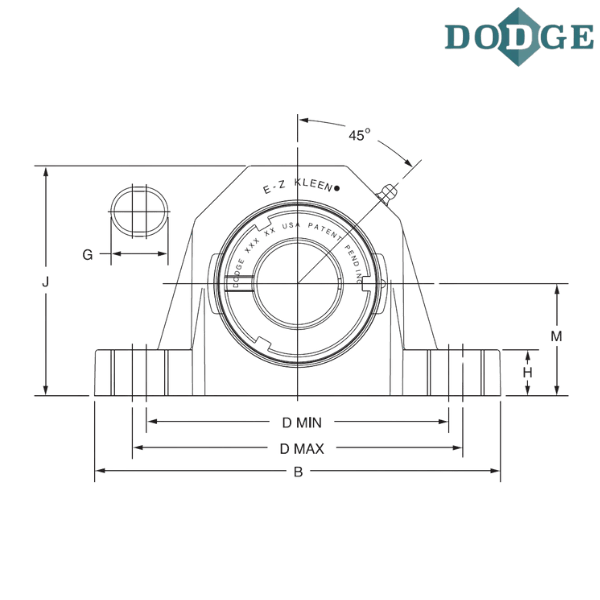

Length Through Bore (A) inch - 1.46
Overall Length (B) inch - 5.48
Thickness (C) inch - 1.48
Bolt to Bolt Minimum Distance (D min) inch - 3.96
Bolt to Bolt Maximum Distance (D max) inch - 4.2
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.59
H (inch) - 0.61
Overall Height (J) inch - 2.86
L (inch) - 1.8
Base to Center Height (M) inch - 1.44
R (inch) - 0.48
S (inch) - 0.98
Z (inch) - 1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2 bolt base
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
P - Polymer housing
CR - Corrosion resistant insert
** Images are for representation purposes only
