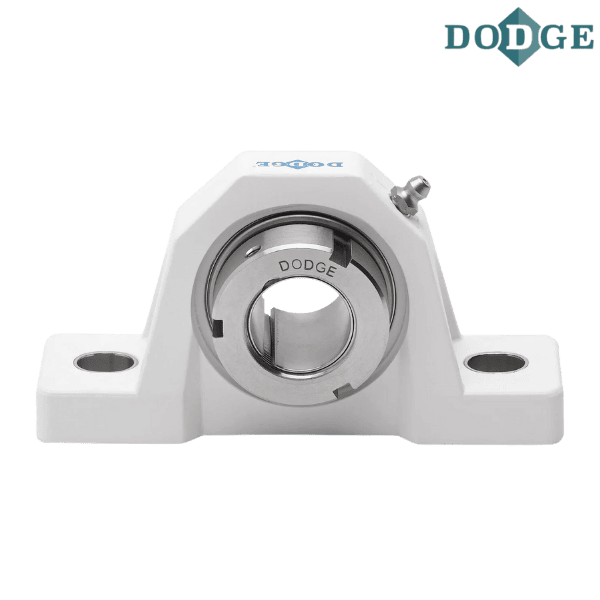

129245 DODGE - P2B-GTEZ-20M-PCR

Brand - DODGE
Item Number - 129245 DODGE - P2B-GTEZ-20M-PCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Polymer Housed Pillow Blocks)
Series - 204
Shaft Size (mm) - 20
Description - P2B-GTEZ-20M-PCR
Part Number (Unit without Adapter) - 129530
Description (Unit without Adapter) - P2B-GTEZ-04-PCR
Part Number (Adapter & Nut Assembly) - 129980
Description ( (Adapter & Nut Assembly) - AN-GT-04-20M-CR
Weight (kg) - 0.4

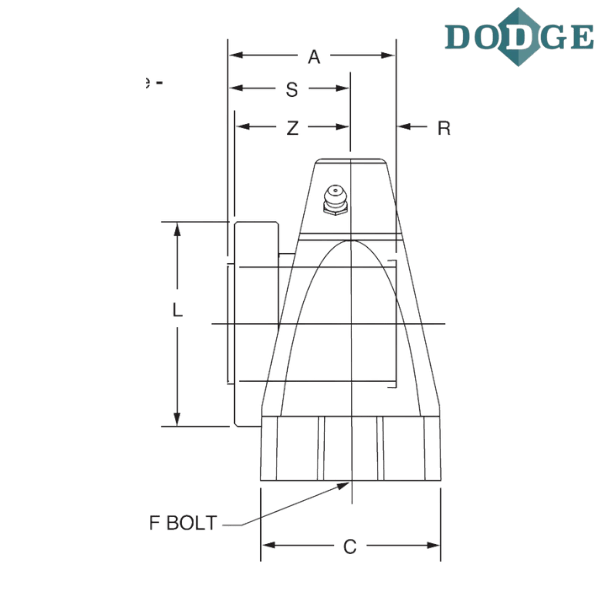

Length Through Bore (A) mm - 37.6

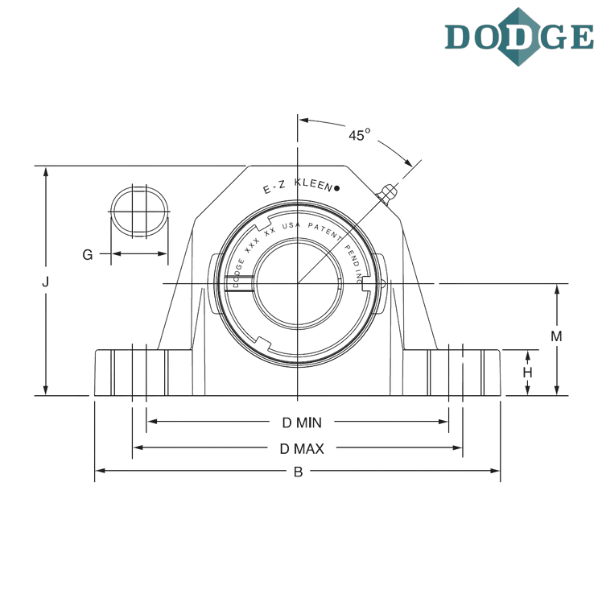

Overall Length (B) mm - 127.5
Thickness (C) mm - 37.6
Bolt to Bolt Minimum Distance (D min) mm - 93
Bolt to Bolt Maximum Distance (D max) mm - 99.6
F-Bolt Diameter - M10
G (mm) - 15
H (mm) - 15.5
Overall Height (J) mm - 66.8
L (mm) - 38.1
Base to Center Height (M) mm - 33.4
R (mm) - 11.7
S (mm) - 25.9
Z (mm) - 26.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2 bolt base
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
CR - Corrosion resistant insert

** Images are for representation purposes only
