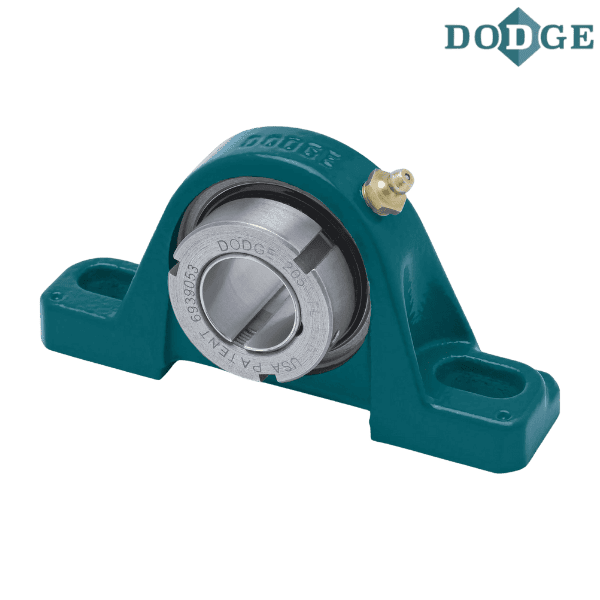

129202 DODGE - P2B-GTB-207

Brand - DODGE
Item Number - 129202 DODGE - P2B-GTB-207
Category - GRIP TIGHT Adapter Ball Bearings (GTB Normal Duty Pillow Blocks)
Series - 212
Shaft Size (inch) - 2.4375
Description - P2B-GTB-207
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129441
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTB-12
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136538
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-12-207-D
Weight (lbs) - 17.5

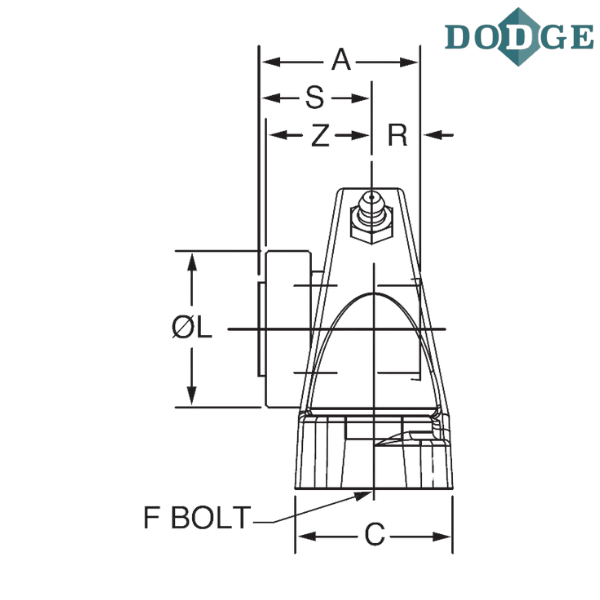

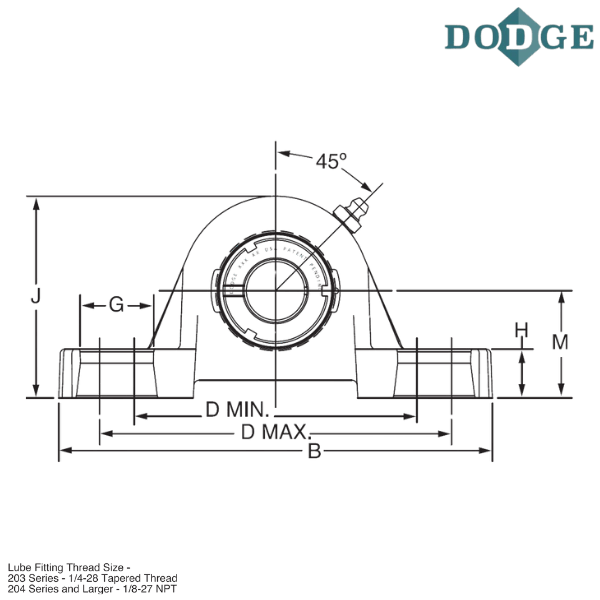

Length Through Bore (A) inch - 2.12
Overall Length (B) inch - 9.5
Width (C) inch - 2.37
Bolt to Bolt Minimum Distance (D min) inch - 6.88
Bolt to Bolt Maximum Distance (D max) inch - 7.94
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.21
H (inch) - 0.81
Overall Height (J) inch - 5.34
L (inch) - 3.69
Base to Center Height (M) inch - 2.69
R (inch) - 0.73
S (inch) - 1.39

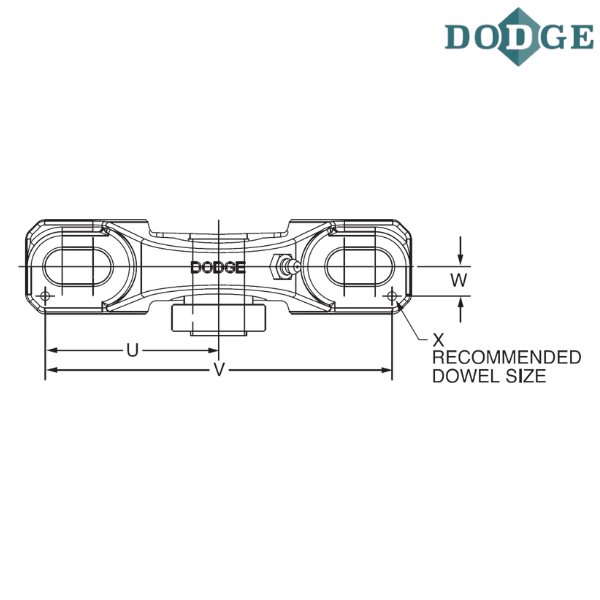

U (inch) - 4.25
V (inch) - 8.5
W (inch) - 0.88
X (inch) - 0.12
Z (inch) - 1.46
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
B - Low backing height pillow block

** Images are for representation purposes only
