129183 DODGE - P2B-GTB-012

Brand - DODGE
Item Number - 129183 DODGE - P2B-GTB-012
Category - GRIP TIGHT Adapter Ball Bearings (GTB Normal Duty Pillow Blocks)
Series - 204
Shaft Size (inch) - 0.75
Description - P2B-GTB-012
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129433
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTB-04
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136522
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-04-012-D
Weight (lbs) - 2.1

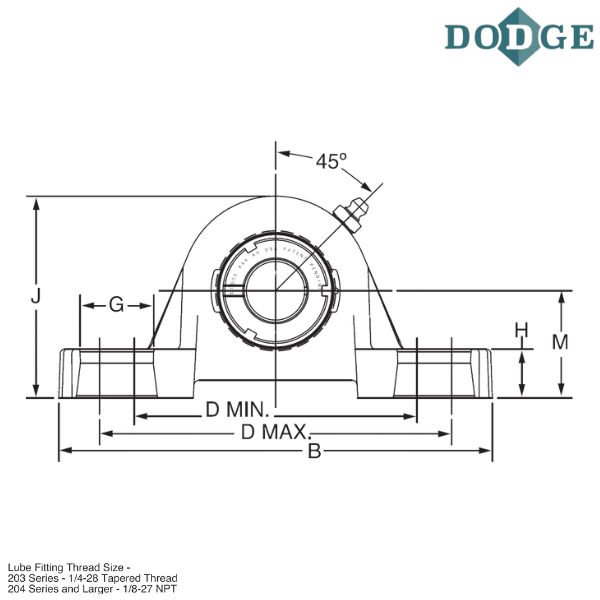

Length Through Bore (A) inch - 1.48
Overall Length (B) inch - 5.25
Width (C) inch - 1.34
Bolt to Bolt Minimum Distance (D min) inch - 3.38
Bolt to Bolt Maximum Distance (D max) inch - 4.19
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.85
H (inch) - 0.47
Overall Height (J) inch - 2.49
L (inch) - 1.5
Base to Center Height (M) inch - 1.25
R (inch) - 0.46
S (inch) - 1.02
U (inch) - 2.25
V (inch) - 4.5
W (inch) - 0.5
X (inch) - 0.12
Z (inch) - 1.03
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
B - Low backing height pillow block

** Images are for representation purposes only
