129048 DODGE - P2B-GTM-012

Brand - DODGE
Item Number - 129048 DODGE - P2B-GTM-012
Category - GRIP TIGHT Adapter Ball Bearings (GMT Medium Duty Pillow Blocks)
Series - 205
Shaft Size (inch) - 0.75
Shaft Size (mm) - 19.05
Description - P2B-GTM-012
Part Number (Unit without Adapter Sleeve and Nut) - 129422
Description (Unit without Adapter Sleeve and Nut) - P2B-GT-05
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136597
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-05-012-D
Weight (lbs) - 2.4
Weight (kg) - 2.4

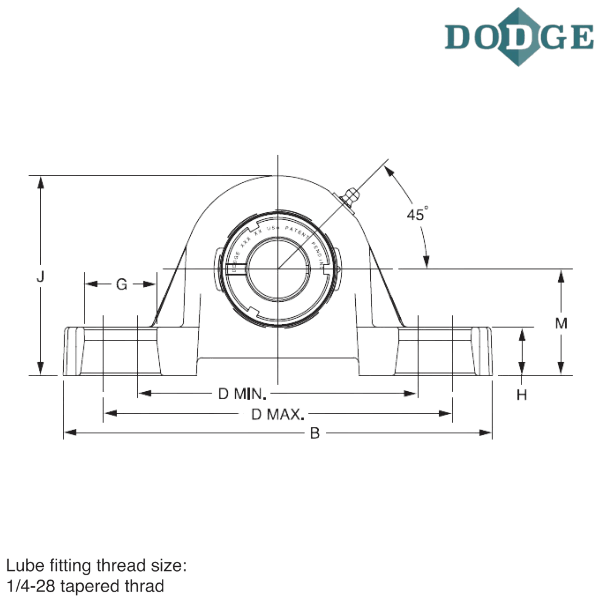

Length Through Bore (A) inch - 1.46
Length Through Bore (A) mm - 37.1
Overall Length (B) inch - 5.5
Overall Length (B) mm - 139.7
Width (C) inch - 1.4
Width (C) mm - 35.6
Bolt to Bolt Minimum Distance (D min) inch - 3.69
Bolt to Bolt Minimum Distance (D min) mm - 93.7
Bolt to Bolt Maximum Distance (D max) inch - 4.5
Bolt to Bolt Maximum Distance (D max) mm - 114.3
F-Bolt Diameter (inch) - 0.375
F-Bolt Diameter - M10
G (inch) - 0.85
G (mm) - 21.6
H (inch) - 0.58
H (mm) - 14.7
Overall Height (J) inch - 2.77
Overall Height (J) mm - 70.4
L (inch) - 1.8
L (mm) - 45.7
Base to Center Height (M) inch - 1.44
Base to Center Height (M) mm - 36.5
R (inch) - 0.48
R (mm) - 12.2
S (inch) - 0.98
S (mm) - 24.9
U (inch) - 2.5
U (mm) - 63.5
V (inch) - 5
V (mm) - 127
W (inch) - 0.5
W (mm) - 12.7
X (inch) - 0.12
X (mm) - 3
Z (inch) - 1
Z (mm) - 25.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
