129047 DODGE - P2B-GTB-60M

Brand - DODGE
Item Number - 129047 DODGE - P2B-GTB-60M
Category - GRIP TIGHT Adapter Ball Bearings (GTB Normal Duty Pillow Blocks)
Series - 212
Shaft Size (mm) - 60
Description - P2B-GTB-60M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129441
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTB-12
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136594
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-12-60M-D
Weight (kg) - 7

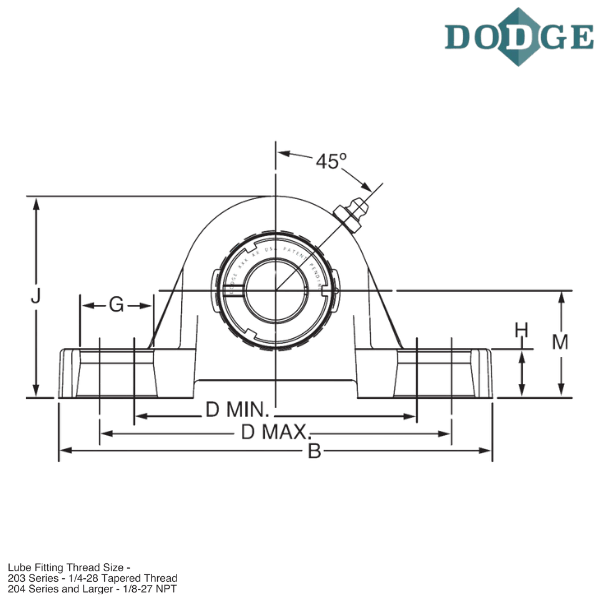

Length Through Bore (A) mm - 53.8
Overall Length (B) mm - 241.3
Width (C) mm - 60.2
Bolt to Bolt Minimum Distance (D min) mm - 174.8
Bolt to Bolt Maximum Distance (D max) mm - 201.7
F-Bolt Diameter - M16
G (mm) - 30.7
H (mm) - 20.6
Overall Height (J) mm - 135.6
L (mm) - 93.7
Base to Center Height (M) mm - 68.3
R (mm) - 18.5
S (mm) - 35.3
U (mm) - 108
V (mm) - 215.9
W (mm) - 22.4
X (mm) - 3
Z (mm) - 37.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
B - Low backing height pillow block
M - Metric
