129045 DODGE - P2B-GTB-50M

Brand - DODGE
Item Number - 129045 DODGE - P2B-GTB-50M
Category - GRIP TIGHT Adapter Ball Bearings (GTB Normal Duty Pillow Blocks)
Series - 210
Shaft Size (mm) - 50
Description - P2B-GTB-50M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129439
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTB-10
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136558
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-10-50M-D
Weight (kg) - 3.9

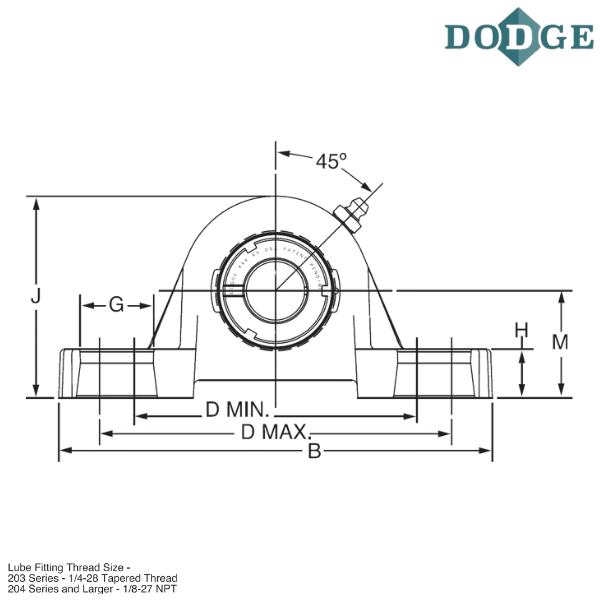

Length Through Bore (A) mm - 47.2
Overall Length (B) mm - 206.2
Width (C) mm - 57.2
Bolt to Bolt Minimum Distance (D min) mm - 152.4
Bolt to Bolt Maximum Distance (D max) mm - 169.7
F-Bolt Diameter - M16
G (mm) - 25.9
H (mm) - 17.3
Overall Height (J) mm - 113.5
L (mm) - 79.5
Base to Center Height (M) mm - 55.6
R (mm) - 16
S (mm) - 31.2
U (mm) - 93.7
V (mm) - 187.5
W (mm) - 20.6
X (mm) - 3
Z (mm) - 32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
B - Low backing height pillow block
M - Metric

** Images are for representation purposes only
