129044 DODGE - P2B-GTB-45M

Brand - DODGE
Item Number - 129044 DODGE - P2B-GTB-45M
Category - GRIP TIGHT Adapter Ball Bearings (GTB Normal Duty Pillow Blocks)
Series - 209
Shaft Size (mm) - 45
Description - P2B-GTB-45M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129438
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTB-09
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136557
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-09-45M-D
Weight (kg) - 3.1

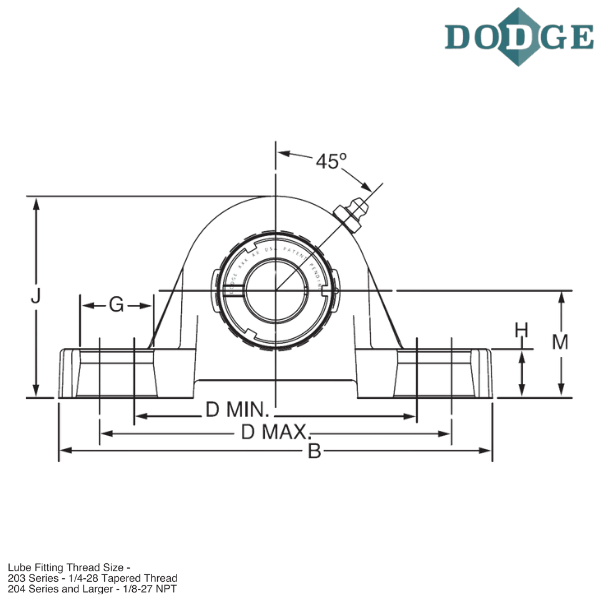

Length Through Bore (A) mm - 47
Overall Length (B) mm - 189
Width (C) mm - 50.8
Bolt to Bolt Minimum Distance (D min) mm - 139.7
Bolt to Bolt Maximum Distance (D max) mm - 157.2
F-Bolt Diameter - M12
G (mm) - 22.9
H (mm) - 17.5
Overall Height (J) mm - 106.9
L (mm) - 72.6
Base to Center Height (M) mm - 52.3
R (mm) - 15.7
S (mm) - 31.2
U (mm) - 85.9
V (mm) - 171.7
W (mm) - 17.5
X (mm) - 3
Z (mm) - 32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
B - Low backing height pillow block
M - Metric

** Images are for representation purposes only
