129041 DODGE - P2B-GTB-25M

Brand - DODGE
Item Number - 129041 DODGE - P2B-GTB-25M
Category - GRIP TIGHT Adapter Ball Bearings (GTB Normal Duty Pillow Blocks)
Series - 205
Shaft Size (mm) - 25
Description - P2B-GTB-25M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129434
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTB-05
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136554
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-05-25M-D
Weight (kg) - 1.1

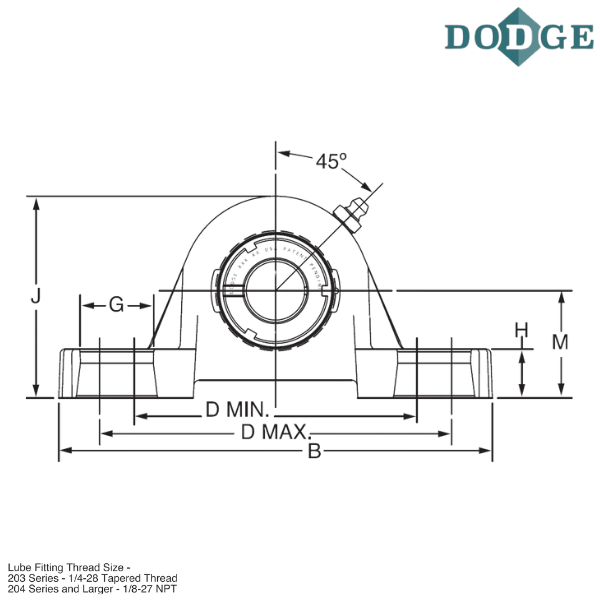

Length Through Bore (A) mm - 37.1
Overall Length (B) mm - 139.7
Width (C) mm - 35.6
Bolt to Bolt Minimum Distance (D min) mm - 93.7
Bolt to Bolt Maximum Distance (D max) mm - 114.3
F-Bolt Diameter - M10
G (mm) - 21.6
H (mm) - 11.4
Overall Height (J) mm - 67.1
L (mm) - 45.7
Base to Center Height (M) mm - 33.3
R (mm) - 12.2
S (mm) - 24.9
U (mm) - 63.5
V (mm) - 127
W (mm) - 12.7
X (mm) - 3
Z (mm) - 25.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
B - Low backing height pillow block
M - Metric
