129040 DODGE - P2B-GTB-20M

Brand - DODGE
Item Number - 129040 DODGE - P2B-GTB-20M
Category - GRIP TIGHT Adapter Ball Bearings (GTB Normal Duty Pillow Blocks)
Series - 204
Shaft Size (mm) - 20
Description - P2B-GTB-20M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129433
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTB-04
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136553
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-04-20M-D
Weight (kg) - 1

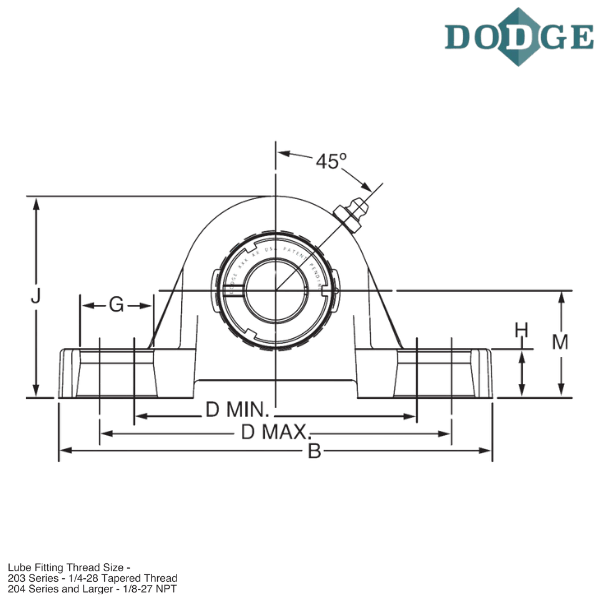

Length Through Bore (A) mm - 37.6
Overall Length (B) mm - 133.4
Width (C) mm - 34
Bolt to Bolt Minimum Distance (D min) mm - 85.9
Bolt to Bolt Maximum Distance (D max) mm - 106.4
F-Bolt Diameter - M10
G (mm) - 21.6
H (mm) - 11.9
Overall Height (J) mm - 63.2
L (mm) - 38.1
Base to Center Height (M) mm - 31.8
R (mm) - 11.7
S (mm) - 25.9
U (mm) - 57.2
V (mm) - 114.3
W (mm) - 12.7
X (mm) - 3
Z (mm) - 26.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
B - Low backing height pillow block
M - Metric

** Images are for representation purposes only
