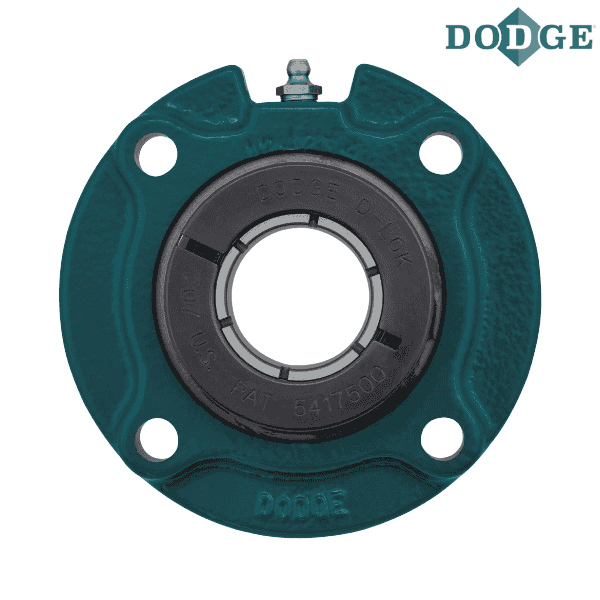

128864 DODGE - FC-DLM-204

Brand - DODGE
Item Number - 128864 DODGE - FC-DLM-204
Category - D-LOK® Ball Bearings (DLM Medium Duty Piloted Flange Bearings)
Series - 212
Shaft Size (inch) - 2.25
Description - FC-DLM-204
Weight (lbs) - 11.6

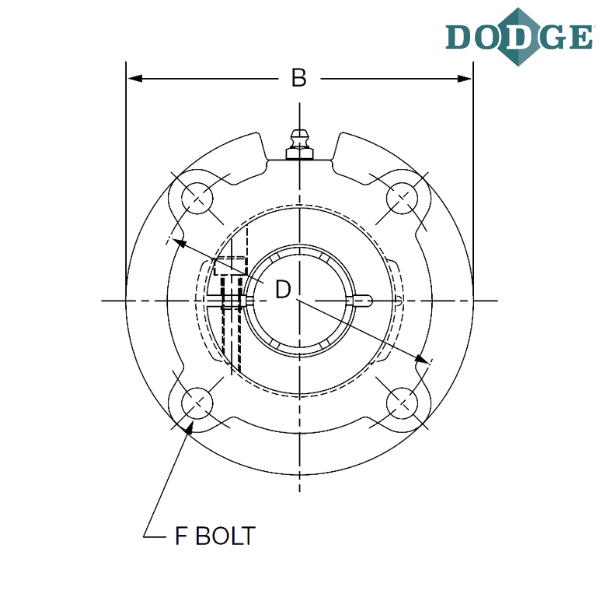

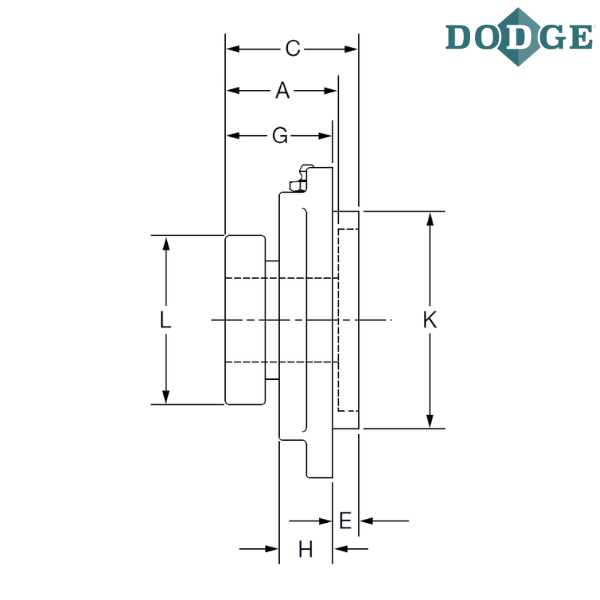

Length Through Bore (A) mm - 60.5
Overall Length (B) mm - 181.1
Thickness (C) mm - 66
Bolt Circle (D) mm - 152.4
Pilot Depth (E) mm - 22.4
F-Bolt Diameter - M12
G (mm) - 43.9
H (mm) - 25.4
Pilot Diameter (K) mm - 127.00/126.95
L (mm) - 104.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
