128859 DODGE - FC-DLM-111

Brand - DODGE
Item Number - 128859 DODGE - FC-DLM-111
Category - D-LOK® Ball Bearings (DLM Medium Duty Piloted Flange Bearings)
Series - 210
Shaft Size (inch) - 1.6875
Description - FC-DLM-111
Weight (lbs) - 6.2

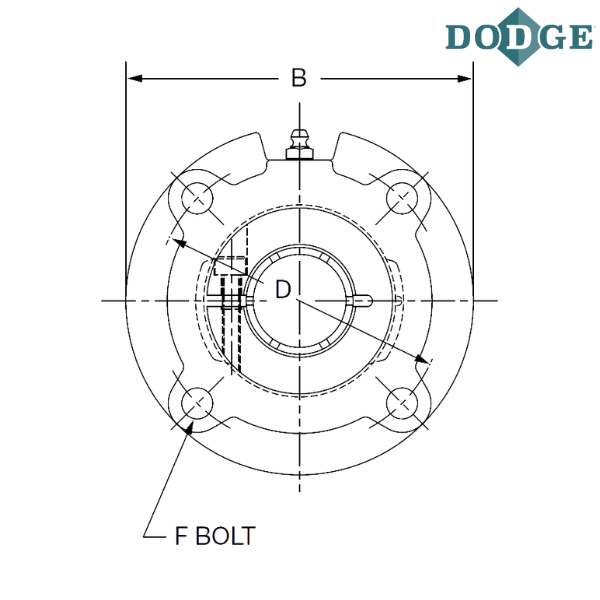

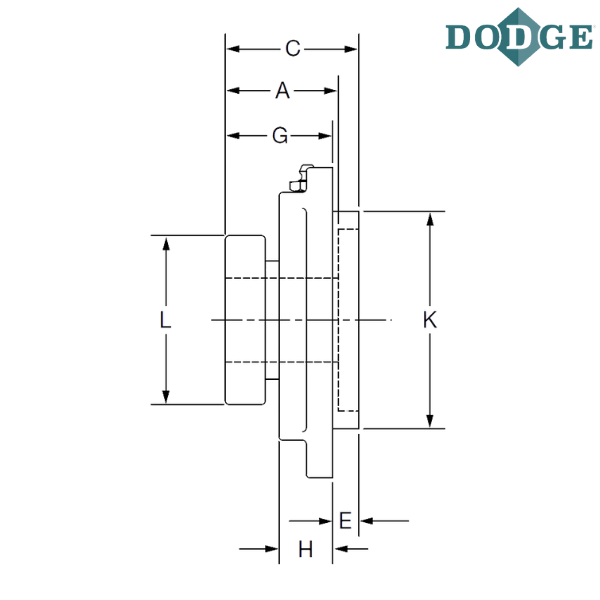

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 6.13
Thickness (C) inch - 2.05
Bolt Circle (D) inch - 5.13
Pilot Depth (E) inch - 0.47
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.58
H (inch) - 0.92
Pilot Diameter (K) inch - 4.250/4.248
L (inch) - 3.24
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
