128855 DODGE - FC-DLM-100

Brand - DODGE
Item Number - 128855 DODGE - FC-DLM-100
Category - D-LOK® Ball Bearings (DLM Medium Duty Piloted Flange Bearings)
Series - 206
Shaft Size (inch) - 1
Description - FC-DLM-100
Weight (lbs) - 3.1

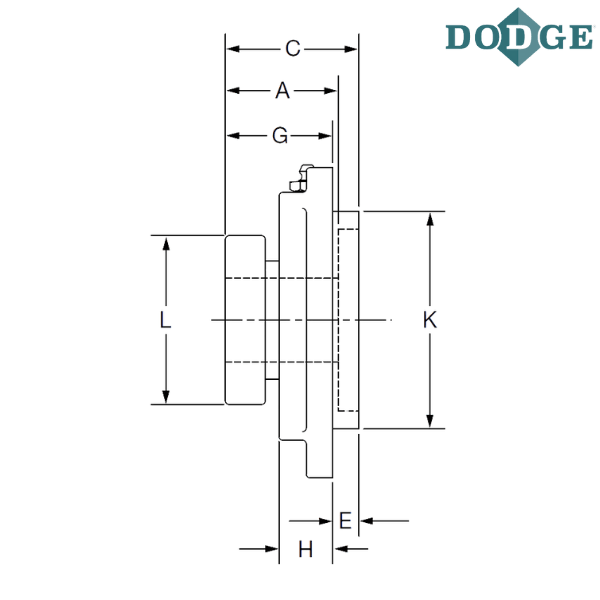

Length Through Bore (A) inch - 1.56
Length Through Bore (A) mm - 39.6

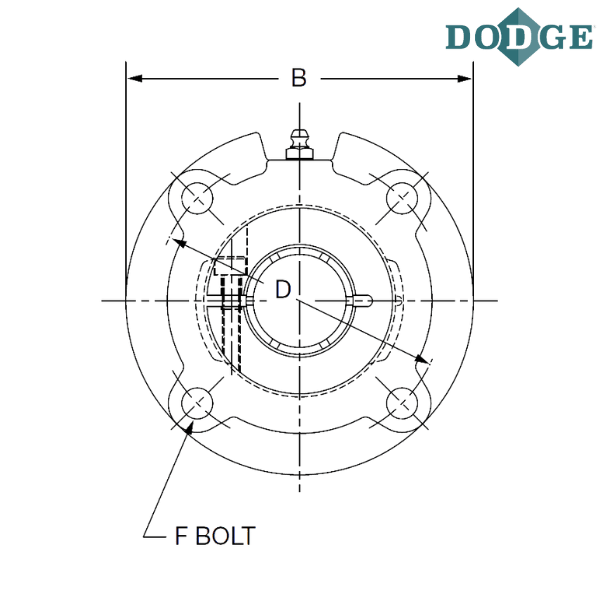

Overall Length (B) inch - 4.38
Overall Length (B) mm - 111.3
Thickness (C) inch - 1.57
Thickness (C) mm - 39.9
Bolt Circle (D) inch - 3.63
Bolt Circle (D) mm - 92.2
Pilot Depth (E) inch - 0.25
Pilot Depth (E) mm - 6.4
F-Bolt Diameter (inch) - 0.375
F-Bolt Diameter - M10
G (inch) - 1.32
G (mm) - 33.5
H (inch) - 0.81
H (mm) - 20.6
Pilot Diameter (K) inch - 3.000/2.998
Pilot Diameter (K) mm - 76.20/76.15
L (inch) - 2.22
L (mm) - 56.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
DLM - Wide inner ring, medium duty, concentric clamp collar

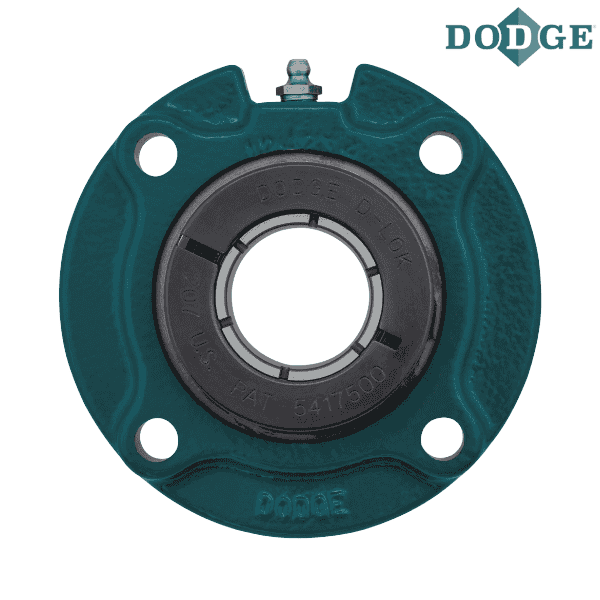

** Images are for representation purposes only
