Description
Brand - DODGE
Item Number - 128842 DODGE - F2B-DLM-200
Category - D-LOK® Ball Bearings (DLM Medium Duty 2-Bolt Flange Bearings)
Series - 211
Shaft Size (inch) - 2
Description - F2B-DLM-200
Weight (lbs) - 9.1

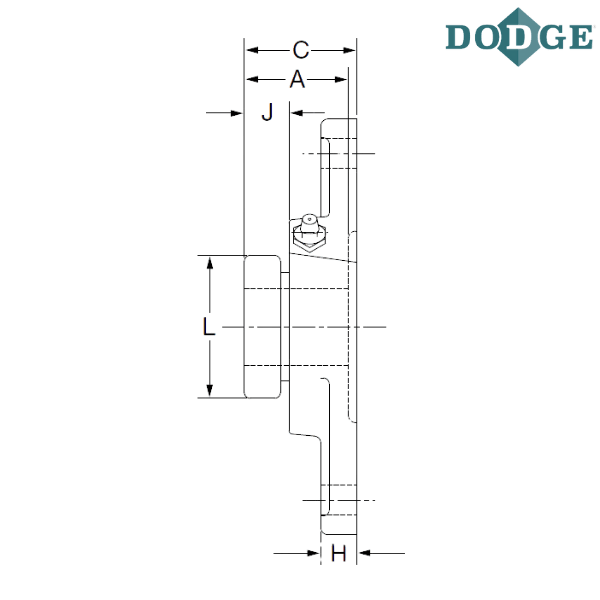

Length Through Bore (A) mm - 51.1

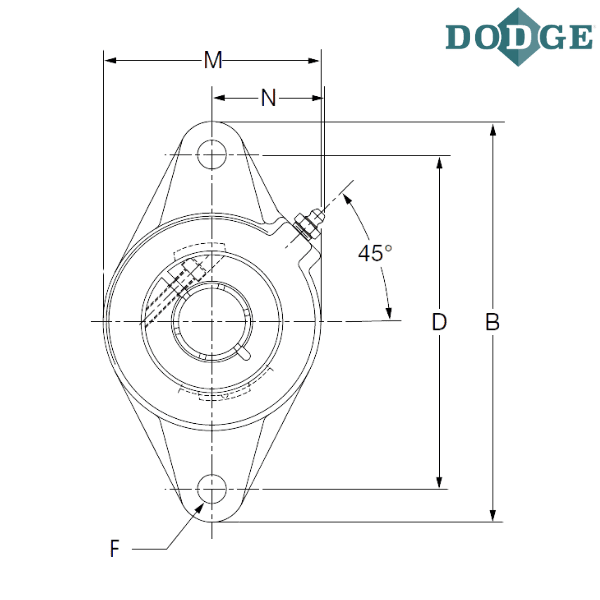

Overall Length (B) mm - 179.3
Thickness (C) mm - 52.3
Bolt Center to Center Length (D) mm - 148.3
F-Bolt Diameter - M14
H (mm) - 16
J (mm) - 16.8
L (mm) - 75.9
Overall Width (M) mm - 111.3
N (mm) - 48.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2-bolt flange
DLM - Wide inner ring, medium duty, concentric clamp collar

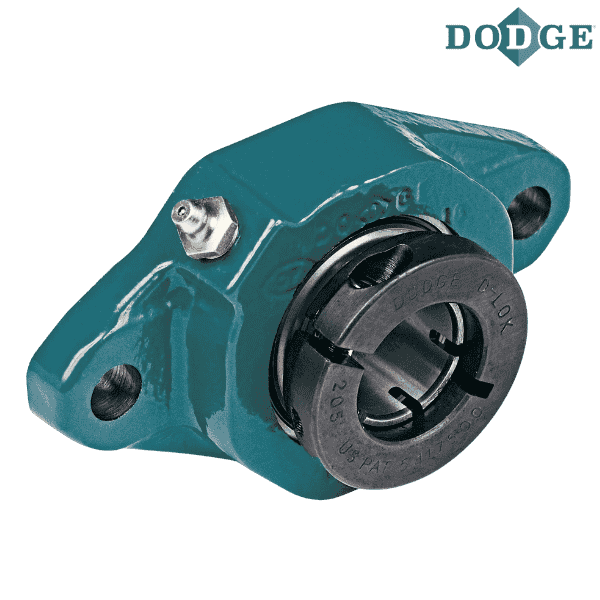

** Images are for representation purposes only
