128841 DODGE - F2B-DLM-115

Brand - DODGE
Item Number - 128841 DODGE - F2B-DLM-115
Category - D-LOK® Ball Bearings (DLM Medium Duty 2-Bolt Flange Bearings)
Series - 211
Shaft Size (inch) - 1.9375
Description - F2B-DLM-115
Weight (lbs) - 9.2

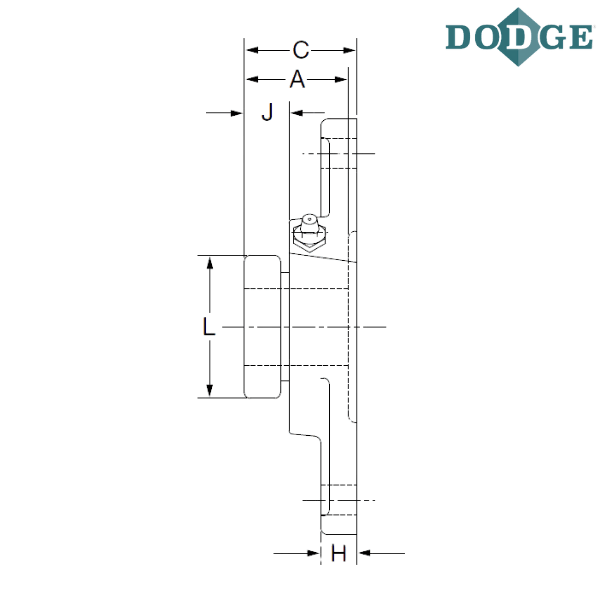

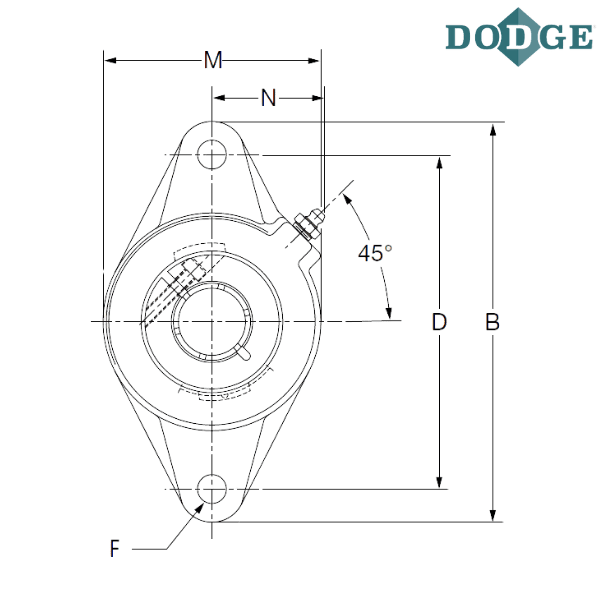

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 7.06
Thickness (C) inch - 2.06
Bolt Center to Center Length (D) inch - 5.84
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.66
L (inch) - 2.99
Overall Width (M) inch - 4.38
N (inch) - 1.91
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
