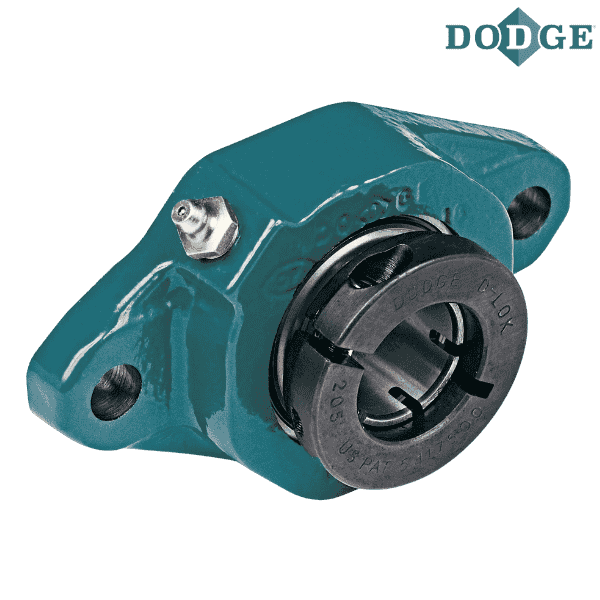

128840 DODGE - F2B-DLM-112

Brand - DODGE
Item Number - 128840 DODGE - F2B-DLM-112
Category - D-LOK® Ball Bearings (DLM Medium Duty 2-Bolt Flange Bearings)
Series - 210
Shaft Size (inch) - 1.75
Description - F2B-DLM-112
Weight (lbs) - 6.1

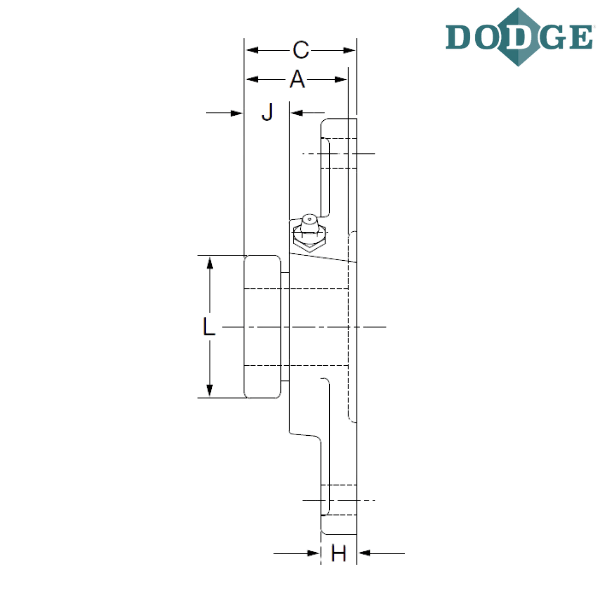

Length Through Bore (A) mm - 57.2

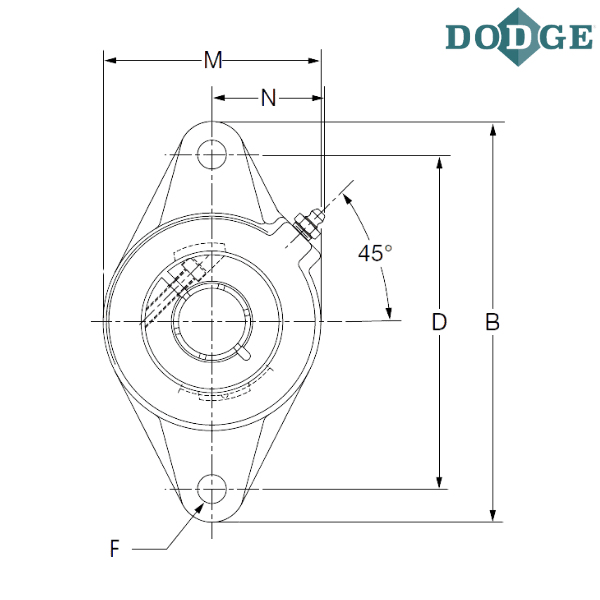

Overall Length (B) mm - 219.2
Thickness (C) mm - 58.4
Bolt Center to Center Length (D) mm - 184.2
F-Bolt Diameter - M16
H (mm) - 17
J (mm) - 18
L (mm) - 93.7
Overall Width (M) mm - 133.4
N (mm) - 57.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
