Description
Brand - DODGE
Item Number - 128839 DODGE - F2B-DLM-111
Category - D-LOK® Ball Bearings (DLM Medium Duty 2-Bolt Flange Bearings)
Series - 210
Shaft Size (inch) - 1.6875
Description - F2B-DLM-111
Weight (lbs) - 6.2

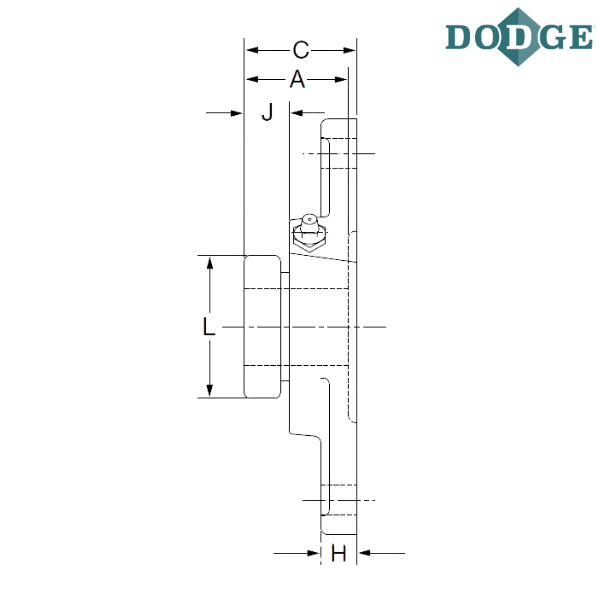

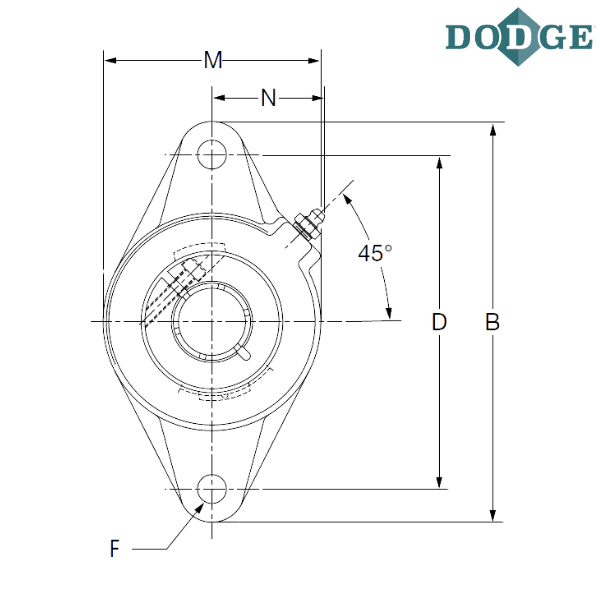

Length Through Bore (A) inch - 2.25
Overall Length (B) inch - 8.63
Thickness (C) inch - 2.3
Bolt Center to Center Length (D) inch - 7.25
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.67
J (inch) - 0.71
L (inch) - 3.69
Overall Width (M) inch - 5.25
N (inch) - 2.27
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2-bolt flange
DLM - Wide inner ring, medium duty, concentric clamp collar

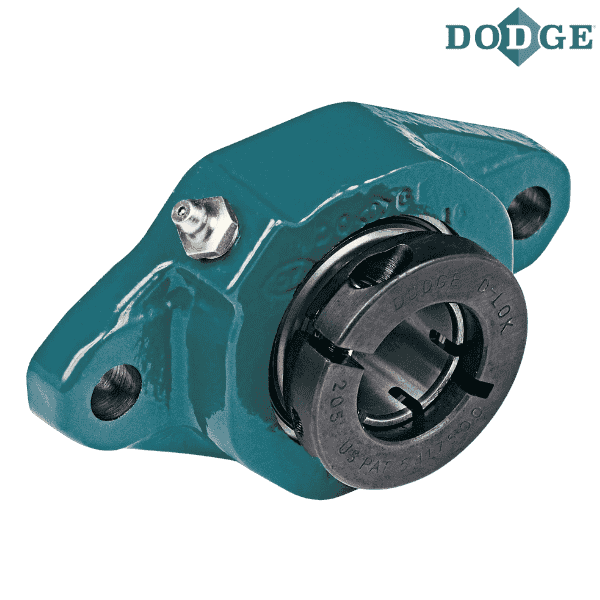

** Images are for representation purposes only
