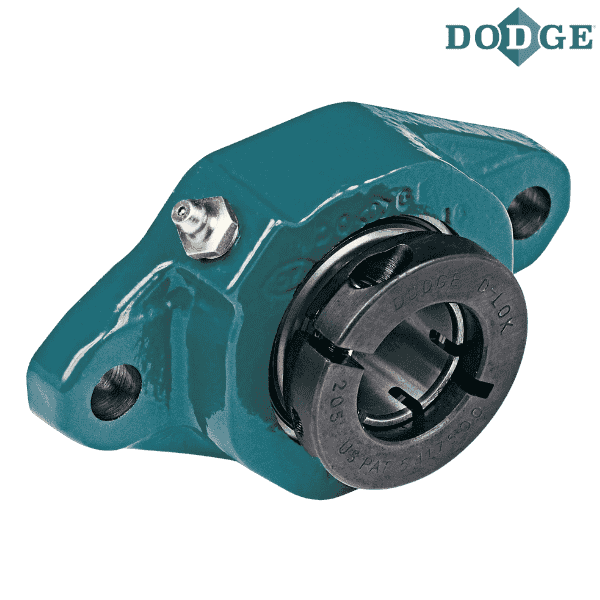

128838 DODGE - F2B-DLM-108

Brand - DODGE
Item Number - 128838 DODGE - F2B-DLM-108
Category - D-LOK® Ball Bearings (DLM Medium Duty 2-Bolt Flange Bearings)
Series - 209
Shaft Size (inch) - 1.5
Description - F2B-DLM-108
Weight (lbs) - 5.6

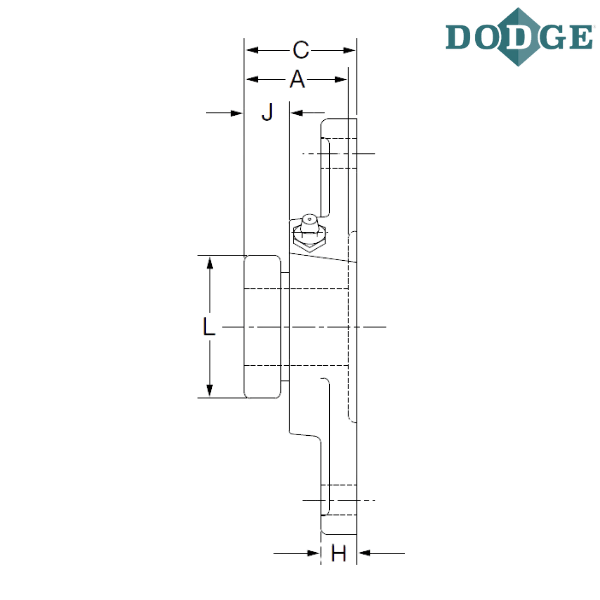

Length Through Bore (A) inch - 2.01
Length Through Bore (A) mm - 51.1

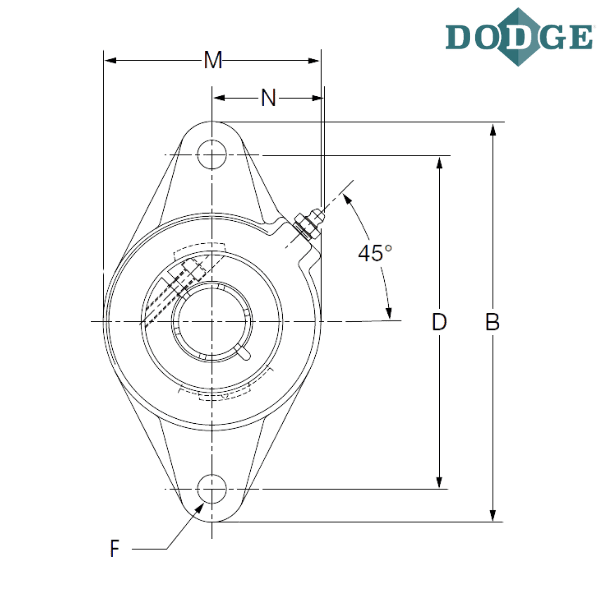

Overall Length (B) inch - 7.44
Overall Length (B) mm - 189
Thickness (C) inch - 2.1
Thickness (C) mm - 53.3
Bolt Center to Center Length (D) inch - 6.19
Bolt Center to Center Length (D) mm - 157.2
F-Bolt Diameter (inch) - 0.5
F-Bolt Diameter - M16
H (inch) - 0.63
H (mm) - 16
J (inch) - 0.63
J (mm) - 16
L (inch) - 3.24
L (mm) - 82.3
Overall Width (M) inch - 4.56
Overall Width (M) mm - 115.8
N (inch) - 2.03
N (mm) - 51.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
