128832 DODGE - P2B-DLM-204

Brand - DODGE
Item Number - 128832 DODGE - P2B-DLM-204
Category - D-LOK® Ball Bearings (DLM Medium Duty Pillow Blocks)
Series - 212
Shaft Size (inch) - 2.25
Description - P2B-DLM-204
Weight (lbs) - 17.5

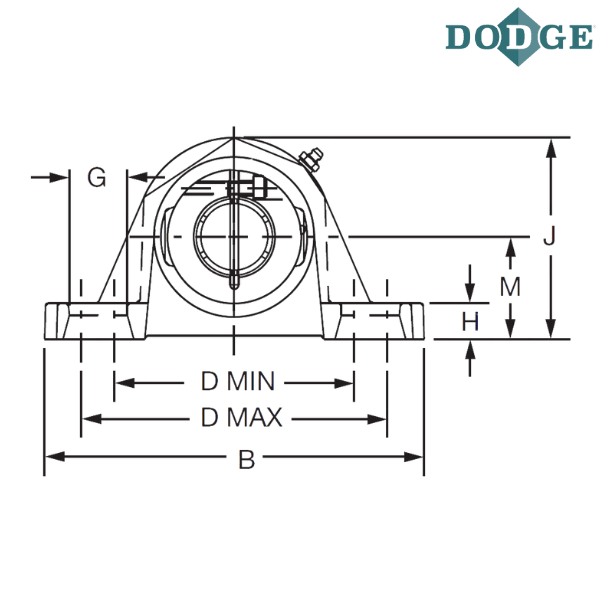

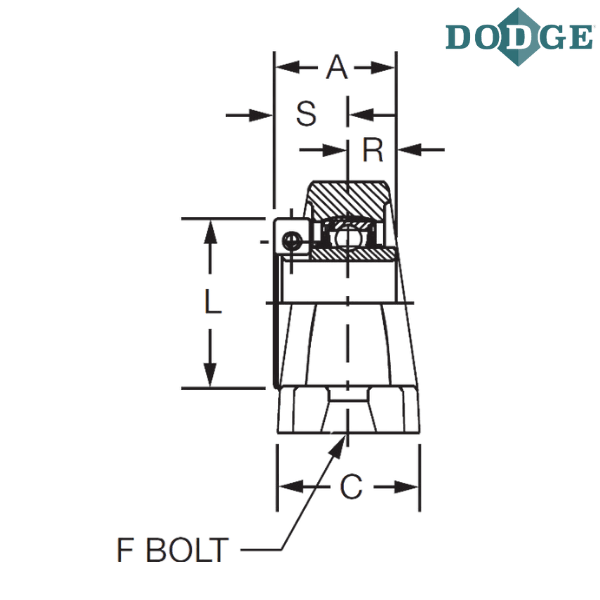

Length Through Bore (A) inch - 60.5
Overall Length (B) inch - 241.3
Width (C) inch - 60.2
Bolt to Bolt Minimum Distance (D min) inch - 174.8
Bolt to Bolt Maximum Distance (D max) inch - 201.7
F-Bolt Diameter (inch) - M16
G (mm) - 30.7
H (mm) - 22.4
Overall Height (J) inch - 137.2
L (mm) - 104.4
Base to Center Height (M) inch - 69.9
R (mm) - 22.9
S (mm) - 37.6

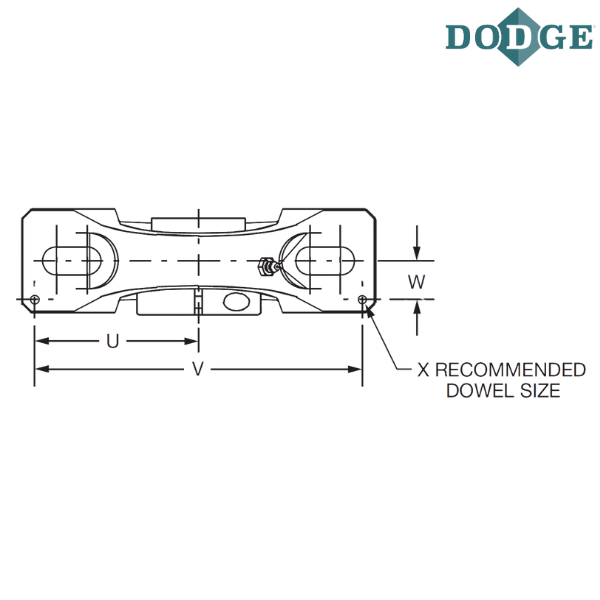

U (mm) - 108
V (mm) - 215.9
W (mm) - 22.4
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar

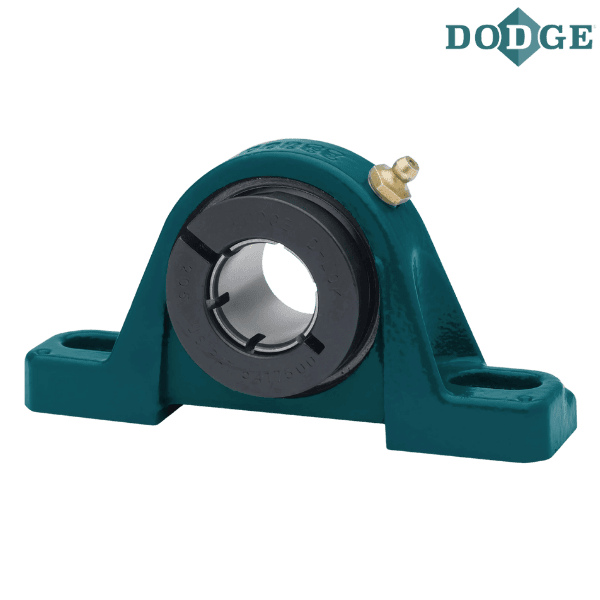

** Images are for representation purposes only
