128828 DODGE - P2B-DLM-112

Brand - DODGE
Item Number - 128828 DODGE - P2B-DLM-112
Category - D-LOK® Ball Bearings (DLM Medium Duty Pillow Blocks)
Series - 210
Shaft Size (inch) - 1.75
Description - P2B-DLM-112
Weight (lbs) - 10.1

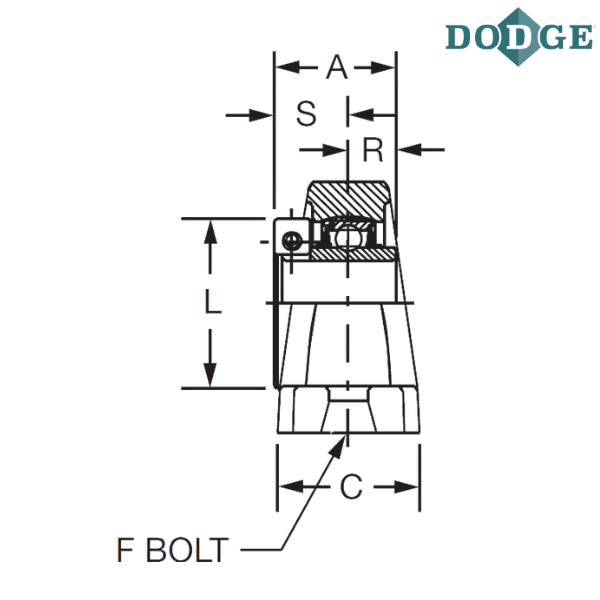

Length Through Bore (A) inch - 51.1

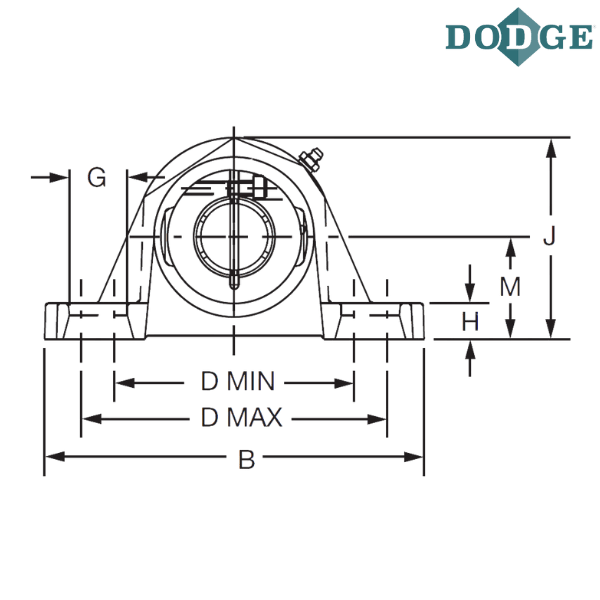

Overall Length (B) inch - 206.5
Width (C) inch - 57.2
Bolt to Bolt Minimum Distance (D min) inch - 152.4
Bolt to Bolt Maximum Distance (D max) inch - 169.7
F-Bolt Diameter (inch) - M16
G (mm) - 27.4
H (mm) - 20.6
Overall Height (J) inch - 116.8
L (mm) - 82.3
Base to Center Height (M) inch - 58.7
R (mm) - 19.1
S (mm) - 32

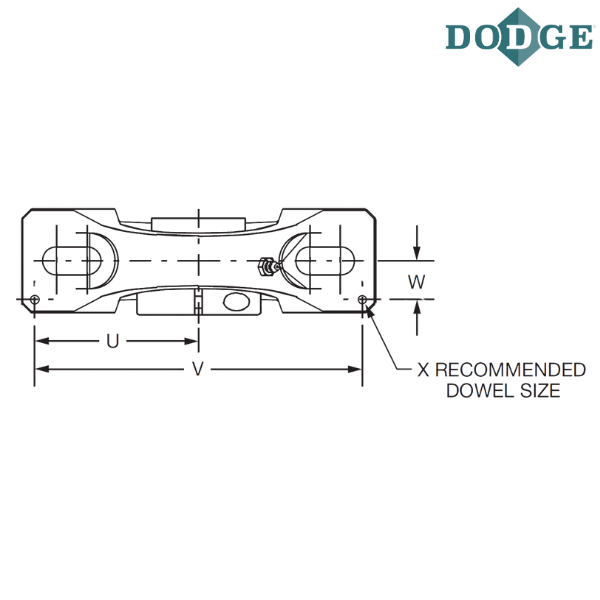

U (mm) - 93.7
V (mm) - 187.5
W (mm) - 20.6
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :

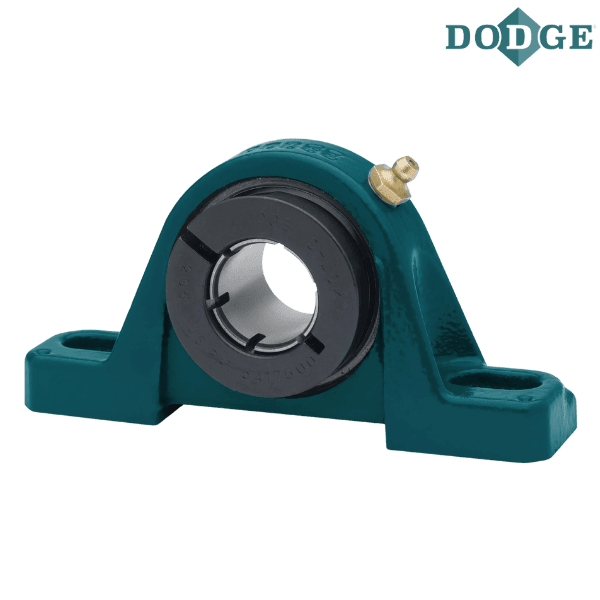

P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
