128827 DODGE - P2B-DLM-111

Brand - DODGE
Item Number - 128827 DODGE - P2B-DLM-111
Category - D-LOK® Ball Bearings (DLM Medium Duty Pillow Blocks)
Series - 210
Shaft Size (inch) - 1.6875
Description - P2B-DLM-111
Weight (lbs) - 10.1

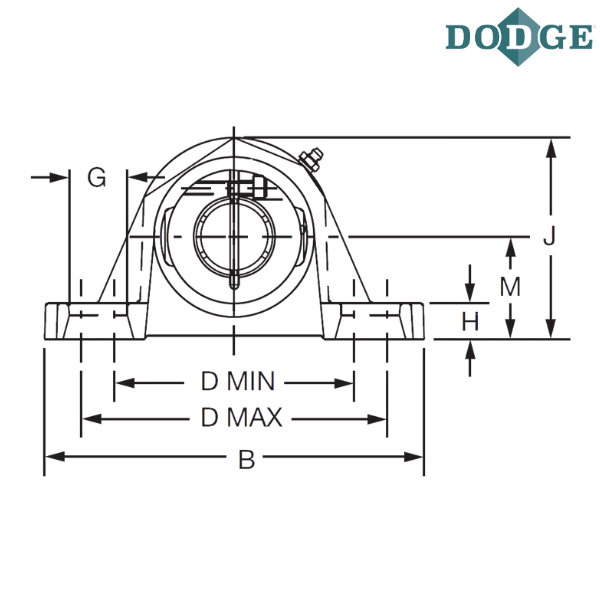

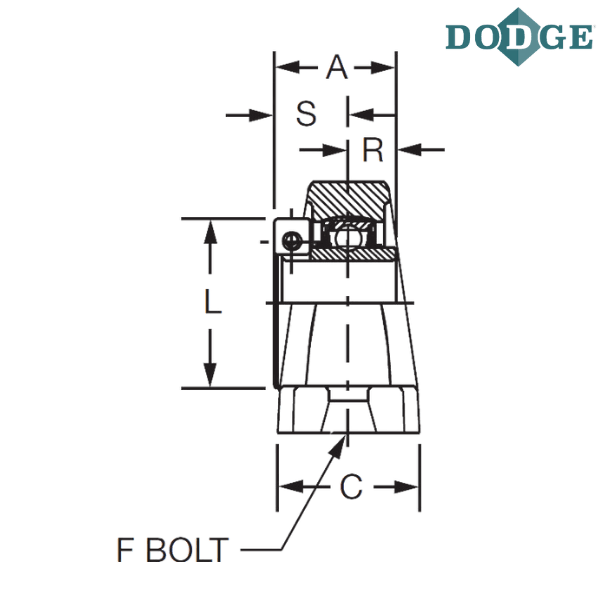

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 8.13
Width (C) inch - 2.25
Bolt to Bolt Minimum Distance (D min) inch - 6
Bolt to Bolt Maximum Distance (D max) inch - 6.68
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.08
H (inch) - 0.81
Overall Height (J) inch - 4.6
L (inch) - 3.24
Base to Center Height (M) inch - 2.31
R (inch) - 0.75
S (inch) - 1.26

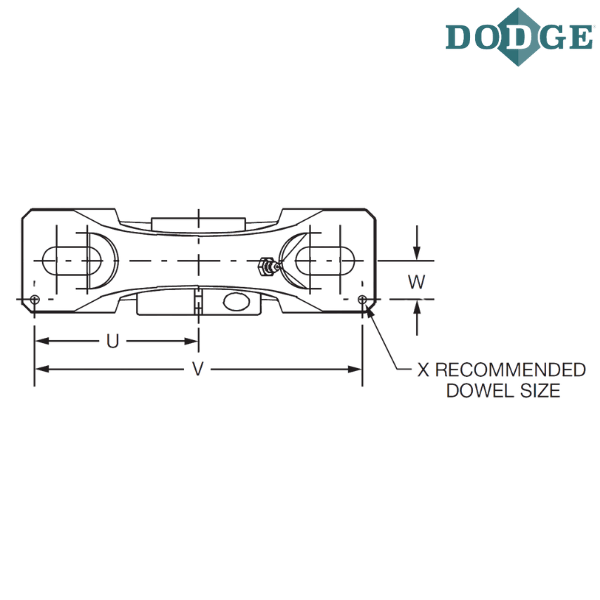

U (inch) - 3.69
V (inch) - 7.38
W (inch) - 0.81
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
