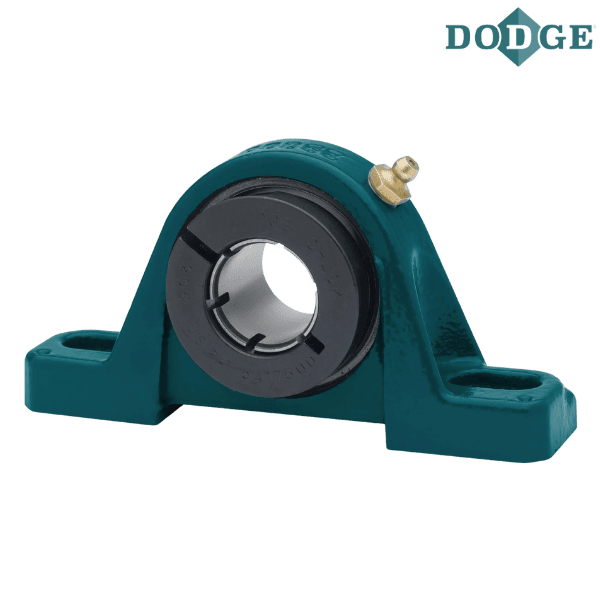

128826 DODGE - P2B-DLM-108

Brand - DODGE
Item Number - 128826 DODGE - P2B-DLM-108
Category - D-LOK® Ball Bearings (DLM Medium Duty Pillow Blocks)
Series - 209
Shaft Size (inch) - 1.5
Description - P2B-DLM-108
Weight (lbs) - 9.2

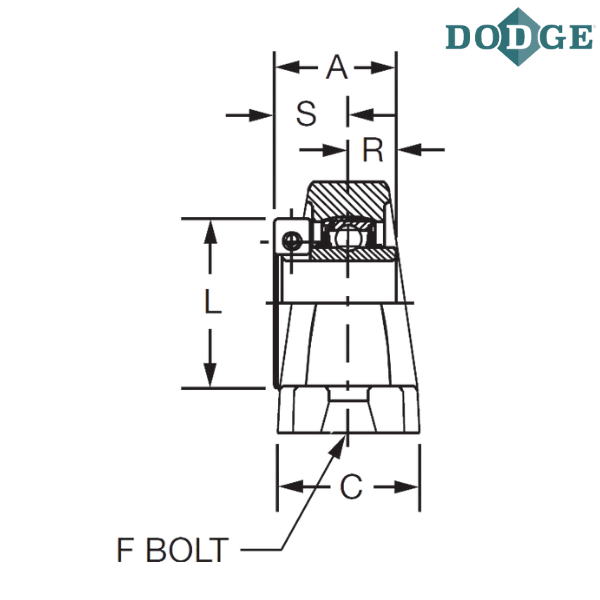

Length Through Bore (A) inch - 2.01

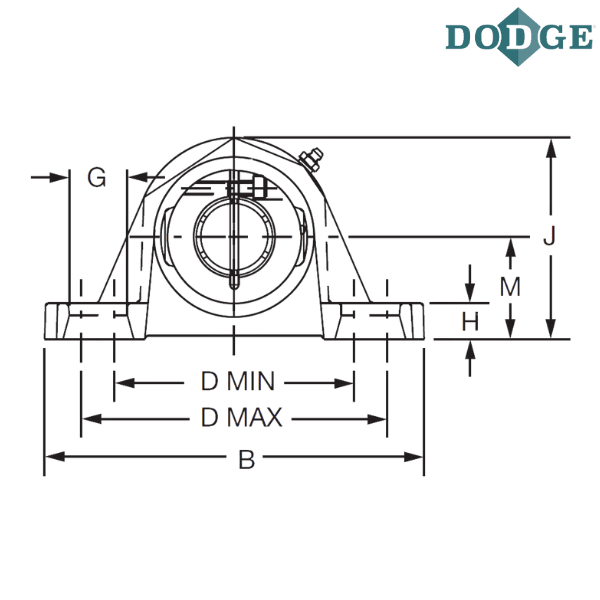

Overall Length (B) inch - 7.5
Width (C) inch - 2.13
Bolt to Bolt Minimum Distance (D min) inch - 5.44
Bolt to Bolt Maximum Distance (D max) inch - 6.06
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.88
H (inch) - 0.88
Overall Height (J) inch - 4.44
L (inch) - 2.99
Base to Center Height (M) inch - 2.13
R (inch) - 0.75
S (inch) - 1.26

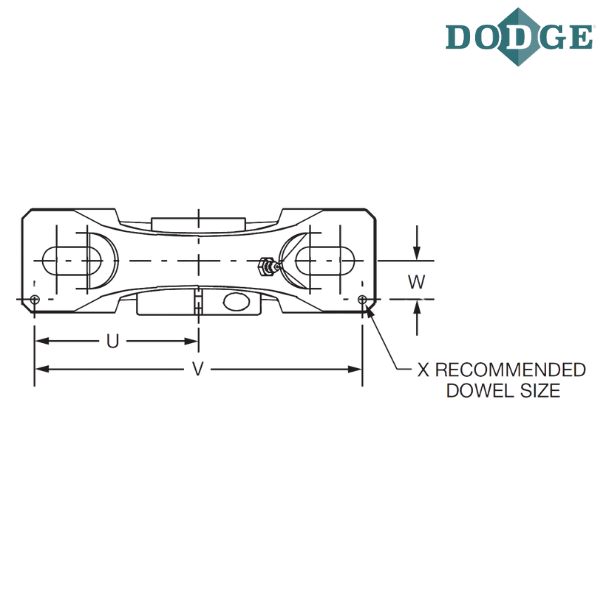

U (inch) - 3.38
V (inch) - 6.75
W (inch) - 0.69
X (inch) - 0.19
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
