128823 DODGE - P2B-DLMU-100

Brand - DODGE
Item Number - 128823 DODGE - P2B-DLMU-100
Category - D-LOK® Ball Bearings (DLM Medium Duty Pillow Blocks)
Series - 206 (DLMU)
Shaft Size (inch) - 1
Description - P2B-DLMU-100
Weight (lbs) - 4.2

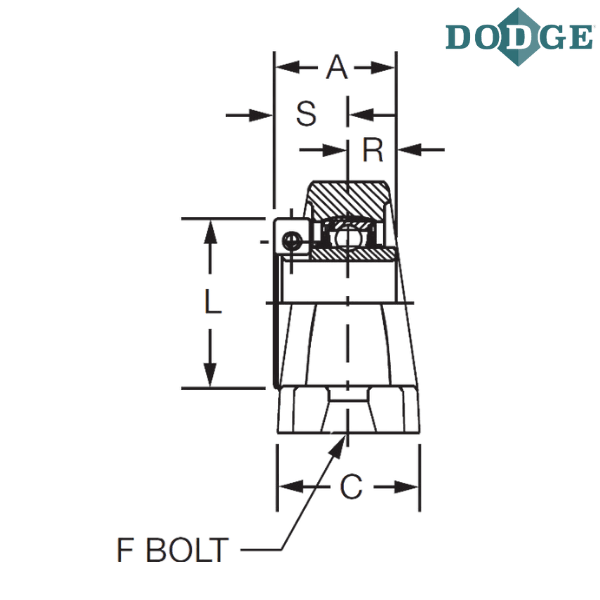

Length Through Bore (A) inch - 1.56
Length Through Bore (A) mm - 39.6

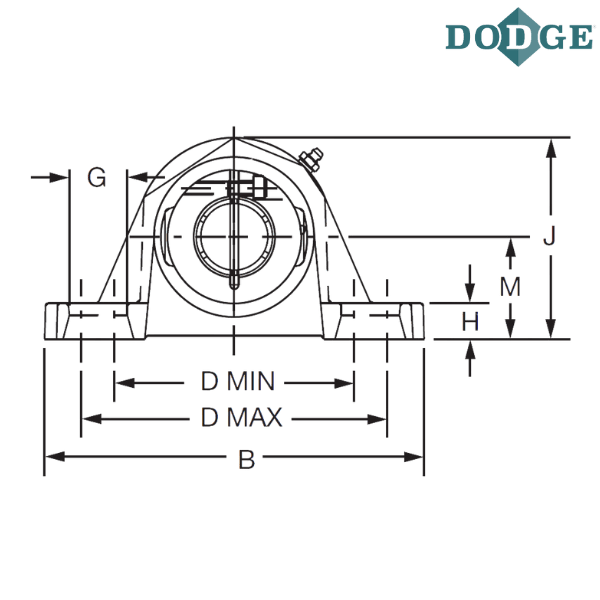

Overall Length (B) inch - 6.25
B (mm) - 158.8
Width (C) inch - 1.75
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) inch - 4.25
Bolt to Bolt Minimum Distance (D min) mm - 108
Bolt to Bolt Maximum Distance (D max) inch - 5
Bolt to Bolt Maximum Distance (D max) mm - 127
F-Bolt Diameter (inch) - 0.5
F-Bolt Diameter - M12
G (inch) - 0.94
G (mm) - 23.9
H (inch) - 0.75
H (mm) - 19.1
Overall Height (J) inch - 3.31
Overall Height (J) mm - 84.1
L (inch) - 2.22
L (mm) - 56.4
Base to Center Height (M) inch - 1.69
Base to Center Height (M) mm - 42.9
R (inch) - 0.58
R (mm) - 14.7
S (inch) - 0.98
S (mm) - 24.9

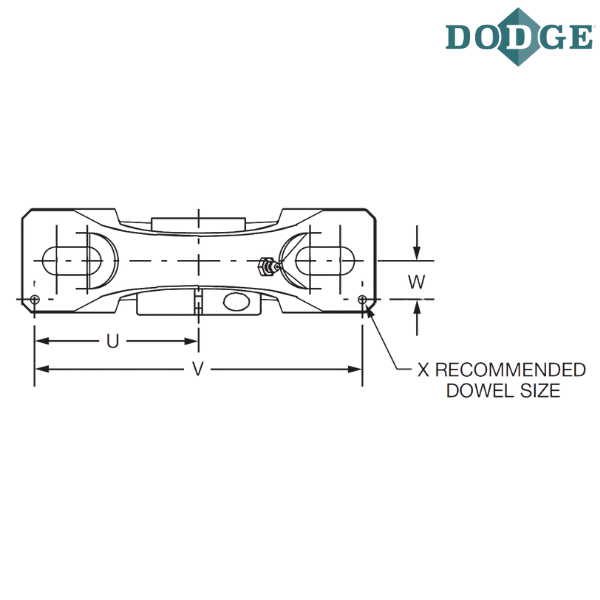

U (inch) - 2.88
U (mm) - 73.2
V (inch) - 5.76
V (mm) - 146.3
W (inch) - 0.56
W (mm) - 14.2
X (inch) - 0.12
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :

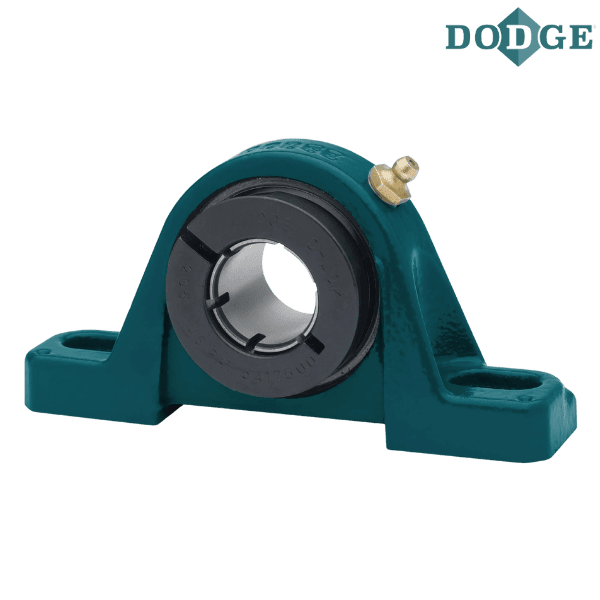

P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar

** Images are for representation purposes only
