128816 DODGE - FC-DL-112

Brand - DODGE
Item Number - 128816 DODGE - FC-DL-112
Category - D-LOK® Ball Bearings (DL Normal Duty Piloted Flange Bearings)
Series - 209
Shaft Size (inch) - 1.75
Description - FC-DL-112
Weight (lbs) - 6.1

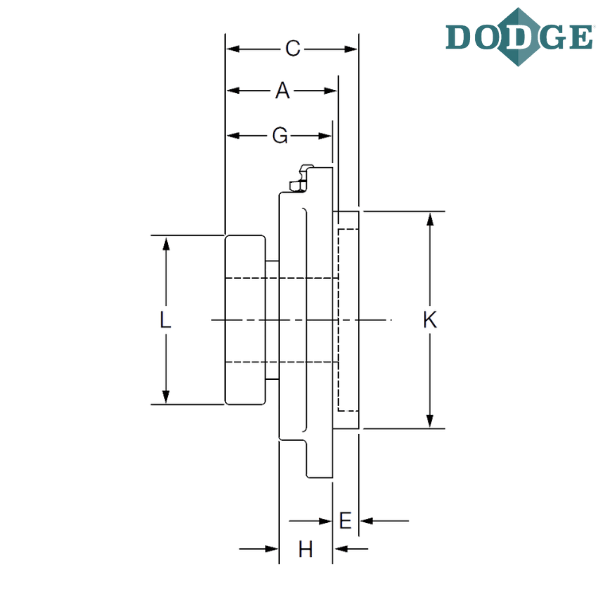

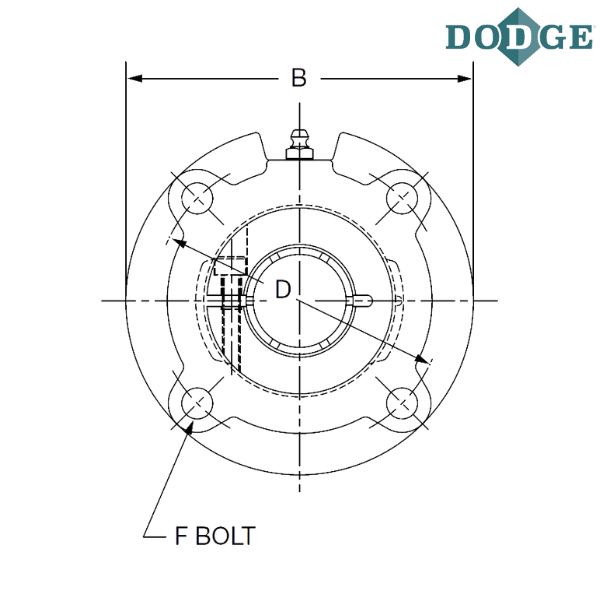

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 6.13
Thickness (C) inch - 2
Bolt Circle (D) inch - 5.13
Pilot Depth (E) inch - 0.44
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.57
H (inch) - 1
Pilot Diameter (K) inch - 4.250/4.248
L (inch) - 2.99
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
DL - Wide inner ring, normal duty, concentric clamp collar

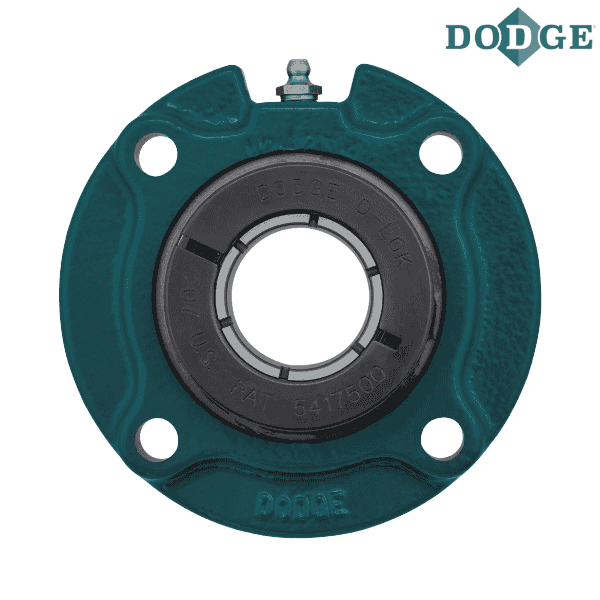

** Images are for representation purposes only
