Description
Brand - DODGE
Item Number - 128806 DODGE - FB-DL-115
Category - D-LOK® Ball Bearings (DL FB Normal Duty 3-Bolt Flange Bracket Bearings)
Series - 210
Shaft Size (inch) - 1.9375
Description - FB-DL-115
Weight (lbs) - 5.7

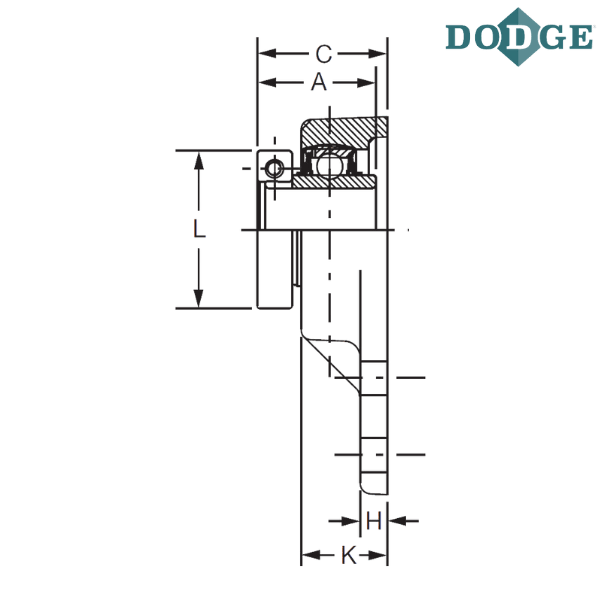

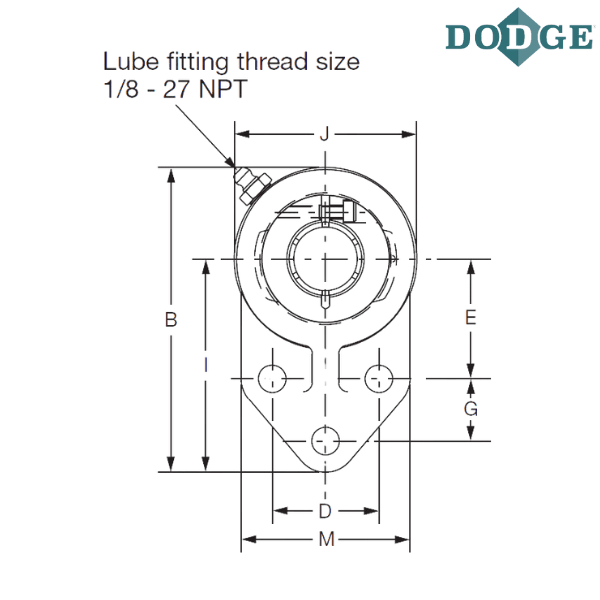

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 7.5
Thickness (C) inch - 2.14
Bolt Center to Center Length (D) inch - 2.75
E (inch) - 2.94
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.63
H (inch) - 0.5
I (inch) - 5.19
J (inch) - 4.63
K (inch) - 1.5
L (inch) - 3.24
M (inch) - 4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FB - Flanged bracket
DL - Wide inner ring, normal duty, concentric clamp collar

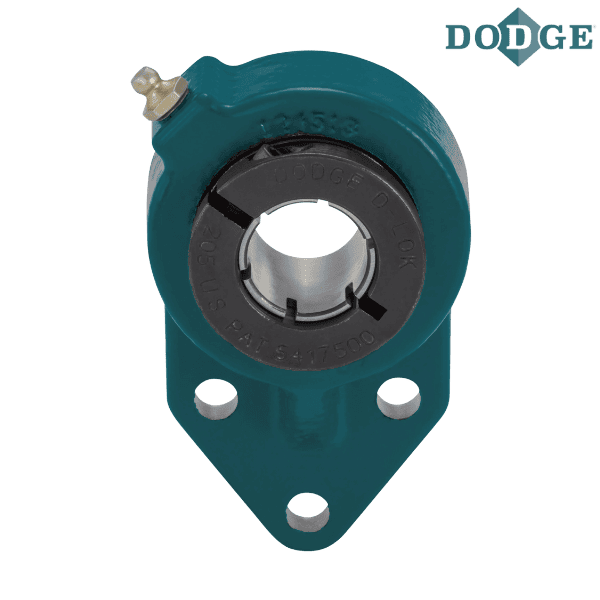

** Images are for representation purposes only
